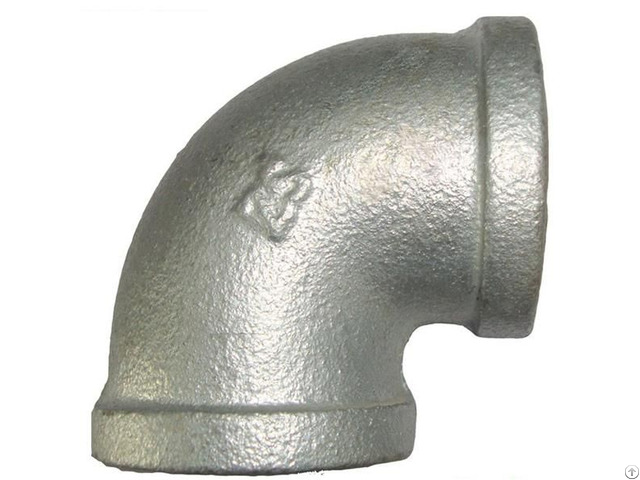

Malleable Iron Pipe Fitting Elbow - China

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries.

When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability.

Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Reducer coupling for connecting two pipes of different sizes going in the same direction

Female National Pipe Taper (NPT) threads on both ends for connection two male threaded pipes of different sizes

Made from malleable iron for tensile strength

National Pipe Taper (NPT) threads for creating tighter seals than straight threads

Galvanized finish resists rust in water, air, and steam applications

Materials: Black Heart Malleable Iron according to ISO5922 ANSI/ASME/A197 DIN1692

Standard: British Standard American Standard DIN Standard

Size: 1/4” – 6” as per ISO49, ANSI/ASME B16.3, DIN2950

Threads: ISO7/1 ANSI/ASME B1.20.1 DIN2999

Tensile Strength: ≥33kg/mm2

Elongation: ≥8%

Hardness: ＜HB150

Test Pressure: 2.5MPA(25KG/CM2)

Working Pressure: 1.6MPA(16KG/CM2)

Shape: Banded.

Beaded.

Plain

Surface: Hot dipped galvanized.

Black

Model: Elbow, Tee, Socket, Nipples, Union, Bushing, Plug, Caps, Bends, Cross, Round Flange, Reducing Elbow, Reducing Socket, Reducing Tee, Reducing Nipple, Crossover etc.

Connection: Threads(male and female)

Application: Suitable for pipe line connect of water, oil, air, steam, gas.

Certificated: ISO9001, CIQ, ITS, SGS, BV, CCIC.

Packing: Export Carton (+ Pallets if need), Double woven bags.

Shipment time: Within 30days after receiving the deposit.

MALLEABLE IRON PIPE FITTINGS DETAILS

Material Black heart malleable iron

DIN Standard Threads : ISO 7/1

Dimension : ISO 49, DIN2950, EN10242

Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)

Physical property Tensile strength >>=350mpa, Elongation >=10%, Hardness <=150HB

Testing pressure 2.5MPa

Working pressure 1.6MPa

Type 1 - Beaded with ribs.

2 - Beaded without ribs.

Size 1/8″, 3/8″, 1/2″, 3/4″, 1″, 11/4″, 11/2″, 2″, 21/2″, 3″, 4″, 5″, 6″.

Surface Ø Galvanized

Ø Normal black/Shining black

Series Heavy, Standard, Medium, Light

Model Elbows, Tees, Crosses, Bends, Unions, Bushings

Lateral Y Braches, Sockets, Nipples, Hexagon/Round

Caps, Plugs, Locknuts, Flanges, Side Outlet Tees

Side Outlet Elbows, etc.

Related products 1 - Carbon steel nipples and sockets 2 - Flanges

3 - Carbon steel butt-welding fittings 4 - Pipes

5 - High-pressure fittings 6 - Valves

7 - P.T.F.

E .

thread seal tapes 8 - Brass fittings

9 - Ductile iron pipe fittings 10 - Copper fittings

11 - Grooved fittings 12 - Sanitary fittings, etc.

Connection Male, Female

Shape Equal, Reducing

Certificate BSI, ANAB, ISO9001, FM

Applications Suitable for Pipe lines connect of steam, air, gas, oil and so on.

Buyer’s drawings or designs are available.

Package 1 - Cartons without pallets.

2 - Cartons with pallets.

3 - Double woven bags

Or as buyer’s requirements.
