Malleable Iron Long Tee - China

Malleable Iron Pipe Clamps

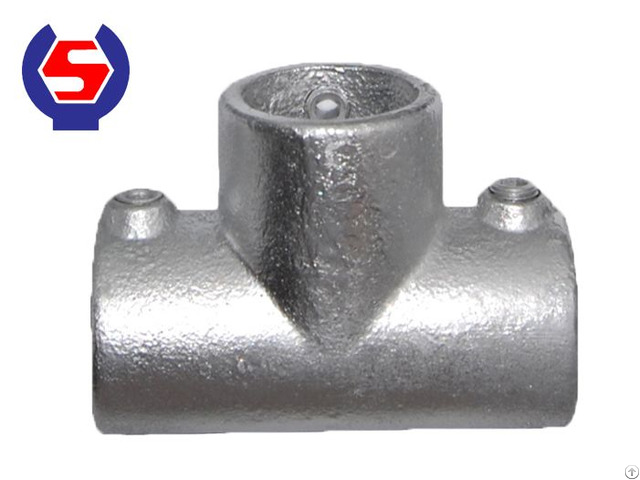

Type 104 Long Tee

90° joint, often used to join intermediate uprights to top rails on level sites.

This pipe clamp can be used where through tube (horizontal) has to be joined within the fitting.

Where such a joint is not required, type 101 can often be used as an alternative.

Body Material Standard Malleable Iron, meet standard ASTM A197

Screw Stainless and Carbon Steel

Tensile Strength >=350Mpa

Elongation >=10%

Hardness HB<=150

Size Available AA to E (OD size 27-60 MM)

Surface Treatment Hot Dipped Galvanized, Black, Zinc Plated & Powder Coated

Pipe Clamp Size Nominal Bore Outside Diameter

AA21 1/2’’ 21.3mm

A27 3/4’’ 26.9mm

B34 1’’ 33.7mm

C42 1-1/4’’ 42.4mm

D48 1-1/2’’ 48.3mm

E60 2’’ 60.3mm Malleable Iron Pipe Clamps are easlily identified by a type number of each design eg.

125 followed by a size code eg.

D48, the latter part of which corresponds with the approximate outside diameter of the tube to be used (48.3mm=1-1/2" nominal bore in this case)Hence a 90° elbow suitable for an 1-1/2" norminal bore tube in this example would be denoted as a 125-D48.

Malleable Iron Pipe Clamps are used for a versatile, multi-purpose system.

The flexibility of the system allows complex structures to be assembled in a quick and efficient manner.
