Limited Flexible Rubber Joint Kxft - China

Single Rubber Joint

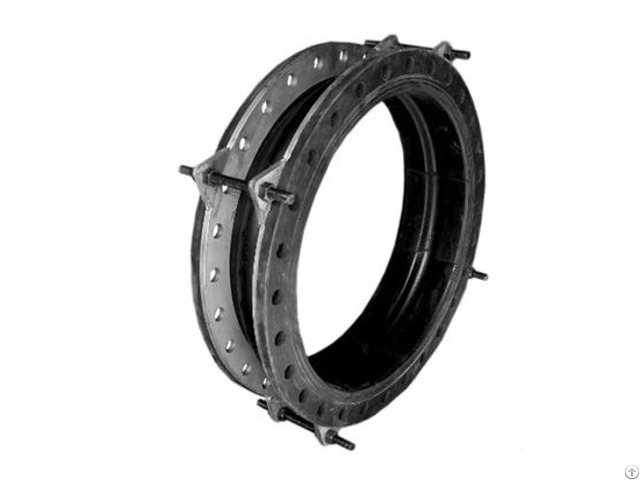

Rubber Joint, The product is mainly used for conveying liquid, gas, solid materials such as metal pipe flexible connection can compensate for displacement, vibration isolation noise, is a novel rubber damping products.

It combines the mechanical extensibility of the metal expander and the multi-displacement function of the flexible rubber joint.

It is not only mechanically expandable for installation and dismantling but also compensates for changes in the temperature of the pipe during operation Linear expansion and contraction as well as compensate for the ground settlement caused by the pipeline center of gravity and other causes of angular deviation, but also to eliminate vibration and noise transmission, is a versatile pipe compensator.

Features ● Minimal axial dimensions ● Limited weight ● Low warping forces ● High-resistance to work ● High-capacity acoustic damping

No.

Name Meterial

1 Inner & Outer Rubber NR, NBR, EPDM

2 Key Frame Nylon cord fabric

3 Reinforcing Ring steel wire

4 Flange Q235

TECHNICAL PARAMETERS

Item/ Model I II III

Working pressure Mpa(kgf/cm²) 1.0(10) 1.6 (16) 2.5 (25)

Explosive pressure Mpa (kgf/cm²) 3.0(30) 4.8(48) 5.5(55)

Vacuum Kpa (mm/Hg) 53.3 (400) 86.7 (650) 100 (750)

Applicable temperature ℃ -15℃~+115℃ special up to -30℃~+250℃

Applicable medium water, sea water, hot water, oil, acid, alkali, and so on

MAIN DATA

Nominal Diameter(DN) Length L Outer diamere of flange Diameter of the centralring of the bolt Hole diameter quantitvd Axial displacement Horizontal Isplacement Angular deflection

mm inch mm mm mm Extension Compression mm (a1+a2)

32 1¼ 95 140 100 18-4 6 9 9 15º

40 1½ 95 150 110 18-4 6 10 9 15º

50 2 105 165 125 18-4 7 10 10 15º

65 2½ 115 185 145 18-4 7 15 11 15º

80 3 135 200 160 18-8 8 19 12 15º

100 4 150 220 180 18-8 10 19 13 15º

125 5 165 250 210 18-8 12 20 13 15º

150 6 180 285 240 22-8 12 25 14 15º

200 8 210 340 295 22-8 16 25 22 15º

250 10 230 395 350 22-12 16 25 22 15º

300 12 245 445 400 22-12 16 25 22 15º

350 14 255 505 460 22-16 16 25 22 15º

400 16 255 565 515 26-16 16 25 22 15º

450 18 255 615 565 26-20 16 25 22 15º

500 20 255 670 620 26-20 16 25 22 15º

600 24 260 780 725 30-20 16 25 22 15º
