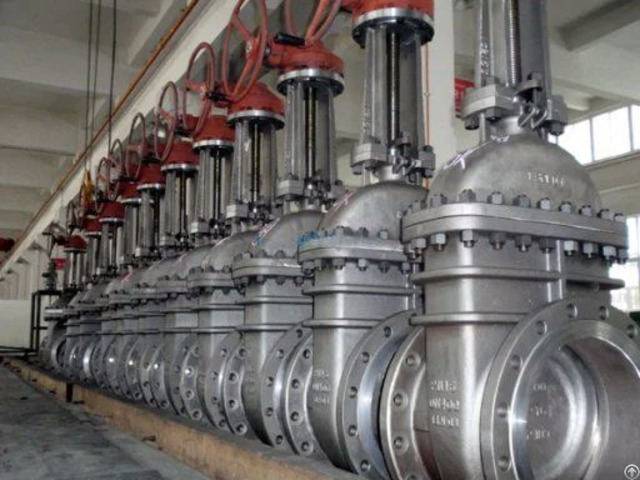

Gate Valve - China

Design of Disc

Gate valves with NPS >2 are of flexible wedge gate;

Gate valves with NPS <2 are of solid wedge gate.

Body and Bonnet Connection

The body and bonnet of Class 150~Class 900 gate valves are usually bolted bonnet design.

And Class 1500~Class 2500 gate valves are usually of pressurized seal design.

Seat

For carbon steel gate valve, the seat is usually forged steel.

The sealing surface of the seat is spray welded with hard alloy specified by the customer.

Welded seat is used for NPS<10 gate valves, and welded on seat can be also optional if being requested by the customer.

Welded on seat is used for NPS<10 carbon steel gate valves .

for Stainless steel gate valve, integral seat is usually adopted, or to weld hard alloy directly integrally.

Threaded or welded on seat is also optional for stainless steel gate valve if being requested by the customer.

Stem Design

The stem is of integral forged design .

The minimum diameter of the stem shall per the standard requirement .

The connection of the stem and disc is T type .

The strength of the connecting area is bigger than that of the T threaded part of the stem .

Stem Nut

Usually, the stem nut is made of ASTM A439 D2 - It is also can be made of copper alloy if being requested by the customer .

For large sized gate valves (NPS 10 for Class 150, NPS 8 for Class 300, NPS 6 for Class 600, NPS 5 for Class 900), rolling bearing is fitted at the two sides of the stem nut in order to minimize the open and close torque of the gate valve.

Special Gate Valve

Besides the common gate valves , We can also makes cryogenic gate valve, Jacketed Gate Valve, Bellow Sealed Gate Valve, Extension Stem Gate Valve for underground application, Flat Gate Valve, etc.

Water seal gate valve.

By-Pass and Drain Connections, Indicator and Locking Devices.

Operation type

Handwheel, Gear, Electric actuator, Pneumatic actuator, Bare stem

Standard

Design and Manufacture: API 6D, API600, API603, ISO10434, BS1414 or ASME B16.34

Inspection and Test: API 598/API 6D

End flange dimension: ASME B16.5, ASME B16.47(API 605 , MSS SP44)

Butt ends dimension: ASME B16.25(BW)

Face to face, end to end: ASME B16.10

Pressure-temperature ratings: ASME B16.34

NACE: NACE 0175

Material

ASTM A216 WCB WCC;ASTM A217 WC1 WC6 WC9;ASTM A351 CF8, A351 CF8M,

A351 CF3, A351 CF3M, A351 CN7M;.

ASTM A352 LC1 LCB LCC LC3 or by customers

(Cast Steel, Alloy Steel, Stainless Steel, Special Steel)13CrMo 44 Vaustenite; duplex stainless steel; ferrite; stainless steel;steel castings)
