Ball Valve - China

price: 50.00 Dollar US$

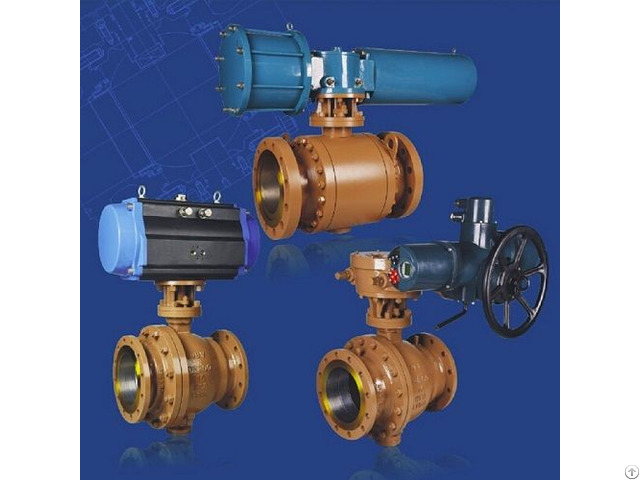

Ball Valve

Products Photos Catalog Ball Valve Photos Catalog

Features

1 - Tow or Three pieces body

2 - Fire-safe, antistatic and blow-out proof stem functions

3 - Up stream sealing, down stream sealing, double sealing

4 - Self relieving seat

5 - Double block and bleed(DBB)function

6 - Emergency sealant injection system

7 - Stem/bonnet extension for cryogenic service

Operation type

Handwheel, Gear, Electric actuator, Pneumatic actuator, Bare stem

Standard

Design and Manufacture: API 6D, API608, BS5351 or ASME B16.34

Inspection and Test: API 598/API 6D

End flange dimension: ASME B16.5, ASME B16.47(API 605 , MSS SP44)

Butt weld end dimension: ASME B16.25(BW)

Face to face, end to end: ASME B16.10/API 6D

Pressure-temperature ratings: ASME B16.34

NACE: NACE 0175

Material

ASTM A216 WCB WCC;ASTM A217 WC1 WC6 WC9;ASTM A351 CF8, A351 CF8M,

A351 CF3, A351 CF3M, A351 CN7M;.

ASTM A352 LC1 LCB LCC LC3(Cast Steel,

Alloy Steel, Stainless Steel, Special Steel)


Company Contact:


  • Phone: 86057767381922

  • Address: No.255 Shenjiabang Road,Baihe Town,Qingpu District,Shanghai China, Shanghai , Shanghai , China

  • Email: Email


Published date: April 20, 2016

  • Business Description: pipeline valve, industrial valve, metal to metal seated valve, automatic valve.

    gate valve, globe valve, check valve , ball valve, butterfly valve
