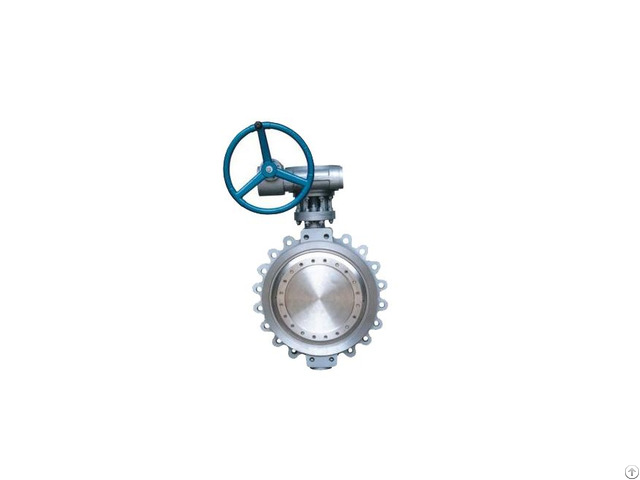

Api 815l Trieccentric Butterfly Valve With Lug - China
price: check with company for price
Standard Design: API609-83 Flange dimension: ASME B16.5 Face to face: ASME B16.10-1992 Pressure test: API 598-82 Parts Name Parts Material Body WCB/304/316/CF8M Disc WCB/304/316/CF8M Stem 316/2Cr13/1Cr18Ni9Ti Sealing 316/PTFE Packing Graphite/PTFE Main External and Connecting Dimensions API 815W/L DN L L1 H H0 D D1 D2 M Z-d Weight(kg) 2" 50 43 108 110 345 152 120.5 92 M18 4-19 9 3" 80 49 114 125 380 190 152.5 127 M18 4-19 11 4" 100 56 127 145 415 229 190.5 157 M18 8-19 13 5" 125 64 140 165 455 254 216 186 M20 8-22 16 6" 150 70 140 175 545 279 241.5 216 M20 8-22 26
Company Contact:
- Posted By: Wenzhou Xinsy Technology Co.,Ltd.
- Phone: +8613506511164
- Address: Rm.3-8110,LOFT8, NO.8 Liming industry zone,Binjiang sub-district, wenzhou , zhejiang , China
- Email:
- Website: https://www.wzxinsy.com
Published date: August 4, 2019
- Business Description: Wenzhou Xinsy Technology Co., Ltd. is as a lead supplier and exporter of stainless steel valve from Wenzhou China.
We pursuit of Safety First, High quality with good price, technology innovation and service to the heart.
Castings direct from own foundry and products processed by digital control machine.
We offer wild range of the valve with API, ANSI, JIS, DIN, GB, BS, KS standard.
The material used is as WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast.
etc.
The Pressure is from CL150 to CL2500, working temperature can be -20 to 400 centigrade, wildly used in oil, gas, chemical, petrochemical pulp, paper, water, waste water, marine.
OEM & ODM are welcome.
