Api 600 Flexible Wedge Gate Valves - China

Valve description:

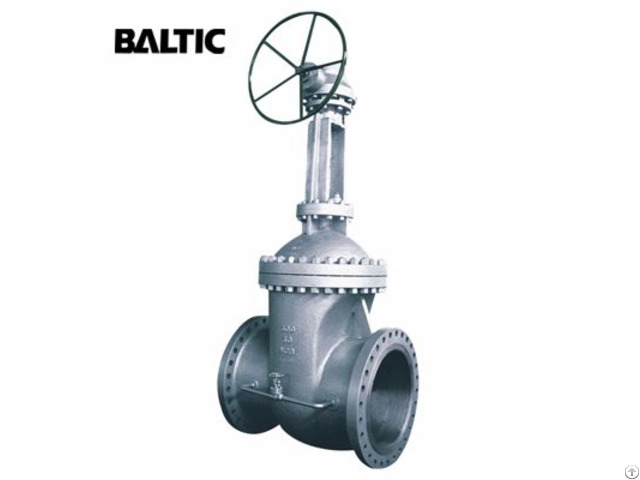

Name: flexible wedge gate valve with bypass.

Design: API 600.

Body: ASTM A216 WCB.

Nominal size: 30 Inch.

Nominal class: 300LB.

Connection ends: RF X RF.

Face to face: ASME B16.10.

Test and inspection: API 598 - Technical parameters and characteristics

Product Wedge Type Gate Valve

Nominal diameter 2" - 60" DN50 - DN1500

Design temp.

-196℃ - 593℃

Design pressure Class 150 - 2500 PN16 - PN420

Material A216 WCB, WCC; A217 WC6, WC9, C5, C12A; A352 LCB, LCC

A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M;

A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN);

ASTM B 148 C95800, C95500, Design standard API 600, ASME B16.34 DIN 3352, EN1984

Face to face ASME B16.10 EN 558 series

Connection end RF, RTJ, BW EN 1092 series

Test standard API 598, ISO 5208 EN 12266 -1

Operation Hand wheel, bevel gear, electric-AUMA, rotork, pneumatic

Application Power station, petroleum, tap water engineering, chemical engineering

Feature 1 Body seat and wedge sealing to be welded on hard alloy material

to improve the erosion resistance and extend the service life of valve

Feature 2 SS+ graphite as bonnet gasket to be easy replaced

Feature 3 Rising stem, OS&Y

Feature 4 The wedge slide down, flexible has good sealing performance

Feature 5 The stem is threaded, it does not contact the medium, to avoid possibility of corrosion
