American Standard Flexible Rubber Joint - China

American standard flexible rubber joint

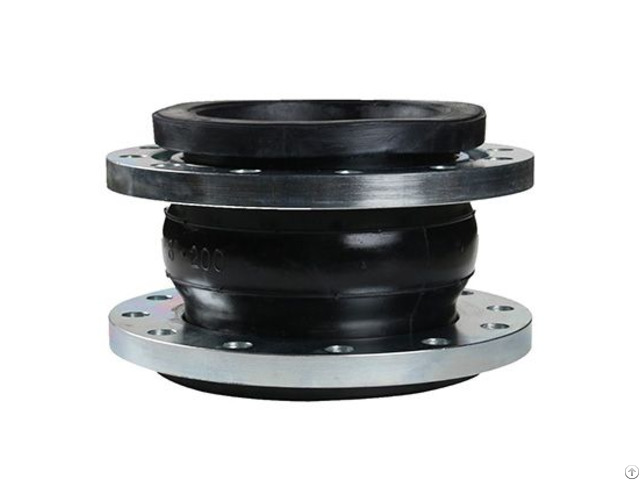

Single Rubber Joint

Rubber Joint

1 - Flanged single sphere expansion rubber joint can greatly reduce pipeline system vibration and noise, can solve the problem of joint displacement, axial expansion, etc.

2 - According to different materials manufacture, flexible rubber joint can be made into many kinds: acid resistance, alkali resistance, corrosive resistance, oil resistance, heat resistance, adapt to many mediums and different environment.

3 - Material is polar rubber, good sealing, light weight, easy installation, long service life, avoid contacting with sharp metal device.

4 - If use overhead, can match with elastic support, when installation, bolt with diagonal method to tighten up.

5 - If pipeline pressure is high, use bolt connect the flange both ends.

6 - Flange connection standard is GB4216.3-4216.5.

Features ● Minimal axial dimensions ● Limited weight ● Low warping forces ● High-resistance to work ● High-capacity acoustic damping

Working Pressure(Bar) 10 16 25

Bust pressure(Bar) 30 48 55

Vacuum(mm Hg) 400 650 750

MATERIAL OF EACH PARTS

No.

Part Meterial

1 Body NR, CR, IIR, NBR, FKM, EPDM

2 Inner & Outer Rubber NR, CR, IIR, NBR, FKM, EPDM, PTFE

3 Body Carcass Nylon cord fabric

4 Reinforcing Ring Multi-strand coppering steel wire

5 Flange Cast and forged carbon steelStainless steelPlastic (CPVC, PVDF, PPH, UPVC, RPP)
