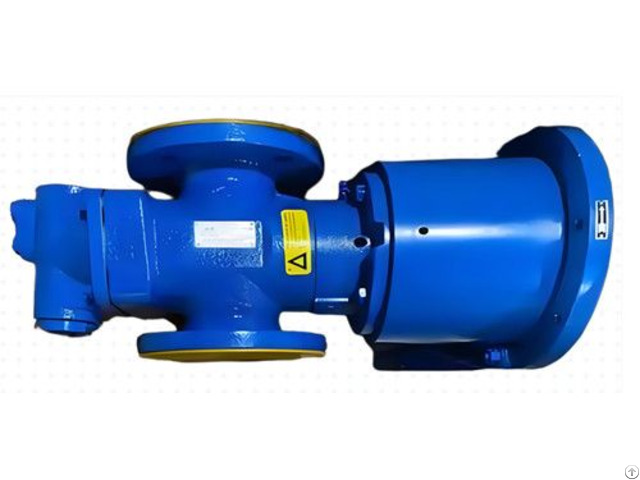

Triple Screw Pump For Oil Supply Transfer Circulation And Booster - China

ACE marine boiler fuel supply transfer pump, triple screw pump

1、 Overview: Flow rate: 10 to 180 L/min/50HZ, maximum pressure difference: 16 bar, applicable range: oil supply, lubrication, circulation, transportation, pressurization

2、 Purpose:

ACE pumps can be used for various fluid media, such as lubricating oil, fuel, vegetable oil, hydraulic oil, as well as other hydraulic fluids, ethylene glycol, polymers, emulsions, and any non corrosive fluid with certain lubricating

properties.

3、 Application:

Lubrication of diesel engines, gears, gas/steam turbines, hydraulic turbines, paper

machines, etc.

Cooling and filtering of large machinery and hydraulic systems, pumping transformer

insulation oil into transformers.

Transport by barge on ships, oil plants, refineries, and oil tank yards.

Provide fuel supply for diesel engines.

parameter

1 - Output pressure: The maximum export pressure is 16 bar.

2 - Displacement /capacity

Unit: cubic decimeters per revolution

Size 025L 025N 032L 032N 038K 038N

Displacement 0.0098 0.0139 0.0206 0.0291 0.0388 0.0491

3 - Pressure relief valve

The pump is equipped with a pressure relief safety valve with an internal circuit

to prevent excessive pressure difference between the inlet and outlet of the pump

when the outlet pipe is blocked, in order to protect the pump.

This valve can be

adjusted to different opening pressures.

The limit value of the pressure relief

safety valve can be set at the factory and adjusted during installation

The maximum back pressure depends on factors such as pump size, speed, and fluid

viscosity, and generally does not exceed 4 bar.

Based on this characteristic of the

valve, it can be used as a pressure regulating valve in situations where pressure

regulation requirements are not very strict.

The maximum pressure setting is 16

bar.

4 - Drive

The ACE pump is designed to be connected to the motor through an elastic coupling.

5 - Maximum speed

The maximum speed is 3600rpm

6 - Rotation direction

The standard design of ACE pump is unidirectional rotation, which means it rotates

clockwise facing the shaft end

7 - Fluid viscosity and temperature

NVBP type 1.6-800CST -20c to 110c

NTBP type 1.6-1500CST -20c to 155c

NQBP type 1.6-1500CST+5C to 155C

8 - Noise level

Under standard drive configuration, the normal noise level of the pump is 58

decibels.

This value was determined according to the ISO-3741 standard in a

development space environment with an outlet pressure of 5 bar, a rotational speed

of 2940rpm, and a viscosity of 40cst

9 - Materials

NVBP NTBP NQBP

Pump body ductile iron

Active screw surface treated steel

Driven screw: surface treated pearlite cast iron

Shaft seal end face sealing material graphite/stainless steel end face sealing

material silicon carbide/silicon carbide/silicon carbide with sealing protection

system

Auxiliary sealing material: rubber

10 - Installation

The ACE pump is connected to the motor through flanges and elastic couplings, and

can be installed horizontally or vertically through angular bracket.
