Tobee B15132ls01 Slurry Pump Joint Is Used To Seal The 2x1 5 B Ah Discharge End - China
price: 1200.00 Dollar US$

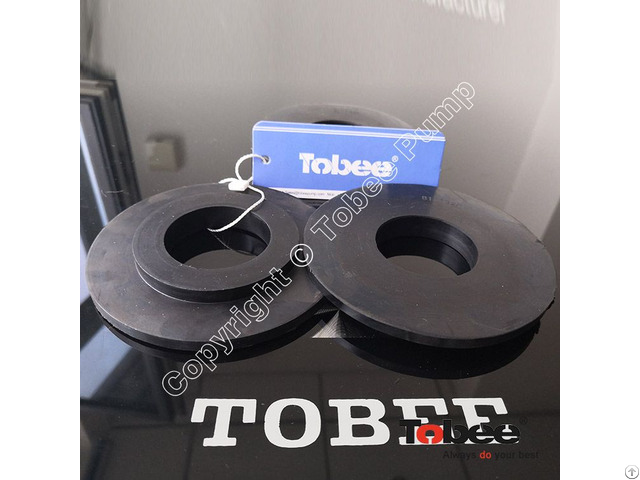

Tobee B15132LS01 Slurry pump discharge joint is used to seal the 2x1.5 B-AH slurry pump discharge end, and Slurry pump discharge joint made in rubber material like S01, S12, S42, R55, S31, S14, S10, S51, etc.
and act on pipeline or valve connected to the pump discharge end.
Slurry pump discharge joint is also one of slurry pump wet end parts which can directorly touch the slurries and play a sealing role of the material.
2x1.5 B-AH slurry pump parts list: No.
Pump Parts Name Pump Model Pump Part Code Matl.
Code Unit Weight
(kg) 1 Adjust Screw 2/1.5B-AH B001 E62 2 Base 2/1.5B-AH B003M G01 20.0 3 Bearing Assembly 2/1.5B-AH B005M ZWZ Bearing 15.5 4 Bearing Housing 2/1.5B-AH B004M G01 7.0 5 Cover Plate 2/1.5B-AH B15013 D21 14.6 6 Cover Plate Bolt 2/1.5B-AH B015 E65 7 Cover Plate Liner 2/1.5B-AH B15017 R55 3.0 8 Discharge Joint 2/1.5B-AH B15132L S01 0.1 9 End Cover 2/1.5B-AH B024 G01 0.8 10 Expeller 2/1.5B-AH B028 A05 0.6 11 Expeller Ring 2/1.5B-AH B029 A05 2.6 12 Expeller Ring 2/1.5B-AH B029R R55 0.7 13 Frame Plate 2/1.5B-AH B15032 D21 14.8 14 Frame Plate Bolt 2/1.5B-AH B026 E62 15 Frame Plate Liner 2/1.5B-AH B15036 R55 2.0 16 Frame Plate Liner Insert 2/1.5B-AH B15041 A05 3.4 17 Frame Plate Stud 2/1.5B-AH B039 E62 18 Gland 2/1.5B-AH B044 G01 0.4 19 Gland 2/1.5B-AH B044 C23 0.4 20 Gland Bolt 2/1.5B-AH B045 C23 21 Grease Retainer 2/1.5B-AH B046 G01 0.2 22 Impeller 2/1.5B-AH B15127 A05 5.9 23 Impeller 2/1.5B-AH B15127 R55 2.0 24 Intake Joint 2/1.5B-AH B15060 S01 0.04 25 Labyrinth 2/1.5B-AH B062 G01 0.3 26 Labyrinth Locknut 2/1.5B-AH B061 E62 0.1 27 Lantern Restrictor 2/1.5B-AH B118 C23 0.2 28 Lantern Ring 2/1.5B-AH B063 C23 0.1 29 Lip Seal 2/1.5B-AH B090 S01 30 Neck Ring 2/1.5B-AH B067 C23 0.03 31 O ring 2/1.5B-AH B109 S10 32 O ring 2/1.5B-AH B217 S10 33 Packing 2/1.5B-AH B111 Q05 34 Packing 2/1.5B-AH B111 Q05A 35 Packing 2/1.5B-AH B111 Q21 36 Packing 2/1.5B-AH B111 X06 37 Piston Ring 2/1.5B-AH B108 G01 38 Seal 2/1.5B-AH B122 S01 0.1 39 Shaft 2/1.5B-AH B073M E05 3.9 40 Shaft Sleeve 2/1.5B-AH B075 C21 0.3 41 Shaft Sleeve 2/1.5B-AH B075 C23 0.3 42 Shaft Sleeve 1.5/1 B-AH B075 J05 43 Shaft Sleeve 2/1.5B-AH B076 C21 0.3 44 Shaft Sleeve 2/1.5B-AH B076 C23 0.3 45 Shaft Spacer 2/1.5B-AH B117 C21 0.2 46 Shaft Spacer 2/1.5B-AH B117 C23 47 Shaft Spacer 1.5/1 B-AH B117 J05 0.2 48 Shim Set 2/1.5B-AH B025 P10 49 Stuffing Box 2/1.5B-AH B078 A05 2.5 50 Volute Frame Seal 2/1.5B-AH B15125 S01 0.02 51 Volute Liner 2/1.5B-AH B15110 A05 15.0
