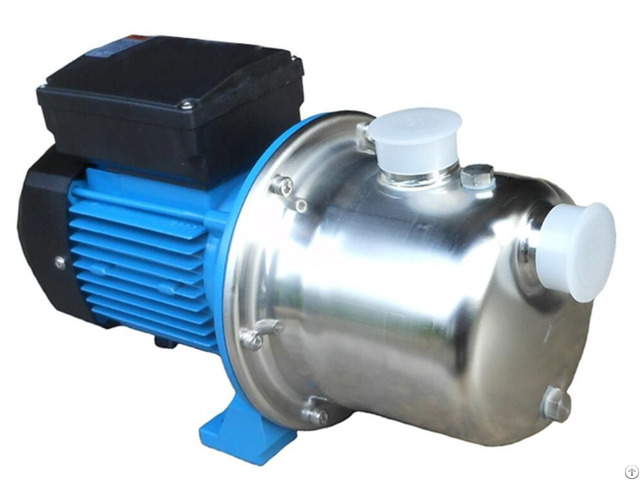

Stainless Steel Self Priming Jet Pump - China

The jet type stainless steel self-priming pump belongs to the small clean water type horizontal single-stage end suction centrifugal pump.

The impeller adopts a closed structure design, and reinforced plastic or stainless steel materials can be selected according to needs.

The pump casing and pump cover of the other flow components are made of SUS304, processed by advanced welding equipment, and subjected to heat treatment in an open flame bright annealing furnace to eliminate the stress caused by steel plate stretching and stamping after bottom cutting; Equipped with a jet injector made of high-strength and heat-resistant engineering plastic material.

The whole machine has the advantages of cleanliness, low cost, no water leakage, low noise, high suction, lightweight portability, wear resistance, safety and reliability, low vibration, and long service life; Adopting B-grade insulation and IP55 protection level, the high-quality aluminum shell motor can be equipped with an internal overheat protector for single-phase power supply to ensure safe use.

Widely used for water pressure boosting in small buildings and industrial production lines.

characteristic

1 - Clean and hygienic, with minimal pollution.

The flow components are made of SUS304 stainless steel and reinforced plastic, and have undergone special treatment to ensure oil-free lubrication and sealing, ensuring minimal secondary pollution to the conveyed medium.

2 - Compact and lightweight, with a beautiful appearance.

It belongs to a small sanitary pump with a power of 0.37-1.0Kw and a compact size.

The flow components are formed by stamping and welding stainless steel plates, and the motor housing is made of aluminum shell, which is lightweight and aesthetically pleasing.

3 - Self suction, easy to use.

The self-priming structure allows for high-level pumping without the need for each infusion, and there is no need for a bottom valve during use.

4 - The water absorption height is relatively high.

Self suction structure with added jet nozzle, high suction range, up to 8-9 meters

5 - High work efficiency.

Adopting a brand new and efficient hydraulic model, the material is made of smooth SUS304 stainless steel and has undergone special processing, resulting in low water flow resistance and high work efficiency

6 - High quality motor, full of power.

Adopting pure copper core motor, automatic wire dropping and winding, low heat generation, high efficiency, and stable performance.

7 - No water leakage and low noise.

Adopting high-quality and high-strength mechanical seals, there is no water leakage during operation.

The direct coaxial structure greatly ensures concentricity, low operating noise, and minimal vibration.

application

Domestic water supply: Pressurization of tap water pipelines for small buildings, urban and rural households.

Industrial pressurization: process water transportation, cleaning system pressurization, equipment pressurization system, and machine tool supporting facilities.

Food category: transportation and filling of purified water, beverages, soy sauce, etc

Medical and Health: Transport various liquid pharmaceutical water and pharmaceutical process water.

Irrigation: Irrigation of farmland and orchards, sprinkler irrigation of gardens, etc.

Chemical industry: mildly acidic and alkaline corrosive liquids.
