Single Suction Horizontal Multistage Boiler Feed Water Pump - China

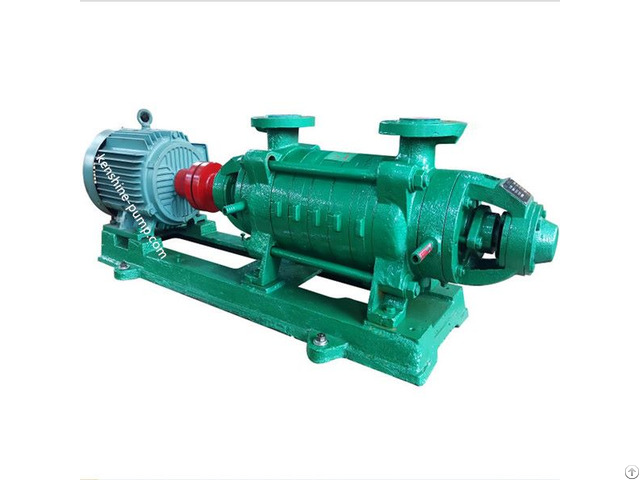

Single suction Horizontal Multistage boiler feed water pump

Boiler feed water with low middle pressure and hot water pump

DG horizontal multistage boiler feeding water pump is a multi-stage centrifugal pump for conveying clean water or other liquid similar to clean water in physical and chemical properties.

It is suitable for feed water pump of medium and low-pressure boilers or secondary high-pressure boilers, as well as high pressure water supply and drainage in factories or cities.

The temperature of conveying medium is -20DegC to 105°C, and the allowable inlet pressure is less than 0.6mpa.

Features

DG multistage type boiler feed water pump is a common horizontal centrifugal pump used together with boiler.

This type of centrifugal pump adopts the high efficiency and energy saving of hydraulic model.

It has a wide range of performance, high efficiency, long service life characteristics to replace the old type of GC type boiler feed pump.

It adopts the structure of horizontal installation, multi-stage, smooth operation, easy installation, and maintenance.

Structure:

This centrifugal pump is mainly composed of inlet and outlet water section, middle section, guide vane, impeller, shaft, shaft sleeve, bearing, bearing body, sealing parts, etc.

Pump seal: gland packing seal or mechanical seal

Pump material: cast iron, cast steel, stainless steel

Pump is connected with motor by the shaft coupling.

Company Contact:

• Posted By: Zhangjiagang free trade zone kenshine international trading Co.,LTD

• Phone: +8651258583352

• Address: Room 216-108, Textile resources market, Zhangjiagang , SUZHOU , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Our company is specialized in water pumps, electromechanical equipments and accessories etc for many years:

  …Various fluid pumps(centrifugal pump, chemical industrial pump, submersible pump, self priming pump, sewage pump, electromagnetic pump, diaphragm pump, gear pump, screw pump etc and their parts such as mechanical seal, pump casings, coupling, impellers etc)

  …Oil drilling equipments and parts (triplex mud pump, mud valve, drilling motor, drilling bits and parts of mud pumps such as piston, cylinder, valves and seats etc)

  …Mechanical parts and tools, instruments etc
