Sewage Vertical Pipeline Inline Not Clogging Pump - China

Pumped liquids (clean water and wastewater)

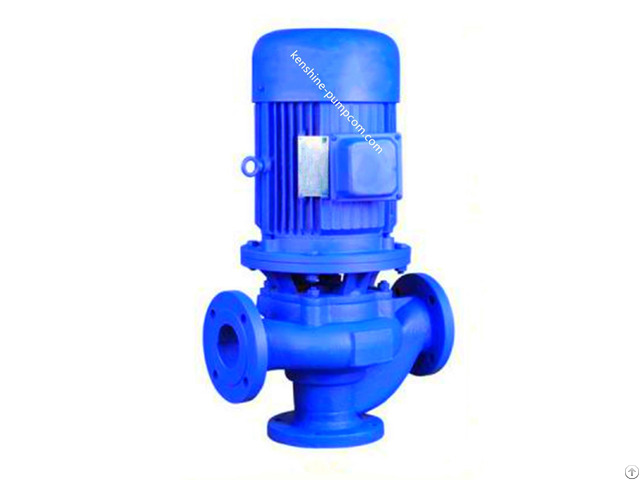

GW vertical pipeline sewage pump is very convenient for installation.

GW pipeline sewage vertical pump is widely used as general pipeline pump for high-rise buildings to pressurize and supply water, delivery water.

GW sewage pump is also suitable to transport sewage/wastewater containing particles and fiber etc.

impurities.

As GW sewage vertical pipeline pump is equipped with single flow channel or double flow channel impeller, it can be used not only as drainage pump, filtration, washing condensing circulation pump etc.

but also as sewage pump and wastewater pump.

Application of Vertical pipeline sewage pump

GW pipeline non-clog sewage pump is used for factory business seriously polluted wastewater discharge, sewage stations of main housing, urban sewage treatment plant water system, civil air defense system drainage stand, waterworks water supply equipment, hospital, hotel of sewage, municipal engineering, construction, mining machine, rural biogas digester, irrigation and other industries.

Pumped sewage /wastewater contain particles, dirt, and can also be used for water and weak corrosive waste liquids.

Operation condition:

A.

environment temperature of pipeline sewage pump is ≤40℃ and humidity ≤95%; Altitude ≤1000 m.

B.

The temperature of the medium shall not exceed 60℃, and the weight of the medium shall be 1 ~ 1.3kg/dm3.

C.

The usage range of cast iron pump is PH5 ~ 9 - Stainless steel pump is for wastewater PH 10-14 - Stainless steel material can use general corrosive medium.

D: Vertical motor 50HZ, 380-415V, 60HZ, 440-460V, Standard motor or Ex-proof motor Features:

1, the pump and the motor are directly connected to the coaxial electromechanical integration pump with compact structure, stable performance.

2 - The design of anti-clogging hydraulic components of large flow passage greatly improves the ability of sewage to pass, and can effectively pass fiber impurity 5 times of the pump diameter and solid particles with a diameter of about 50% of the pump diameter.

3 - Reasonable design, reasonable matching motor, high efficiency, low noise, remarkable energy saving effect.

4, Mechanical seal is made of tungsten carbide.

It is durable and wear resistant to make the pump safe and continuous operation for more than 8000 hours.

5, the pump is vertical structure with inlet and outlet center line on the same level.

And inlet and outlet flange are the same.

Pump installation and disassembly is very convenient.

6 - Small floor space, no need to build pumps room, which can save a lot of capital construction costs.

The whole machine can be used outdoor with a protective cover on fan end of the motor.

Model explanation:

80GW40-15-4

80 means pump inlet and outlet (80mm)

GW means vertical pipeline /inline sewage pump

40 means pump discharging capacity (40m3/h)

15 means pump delivery head (15m)

4 means driving motor power (4KW)
