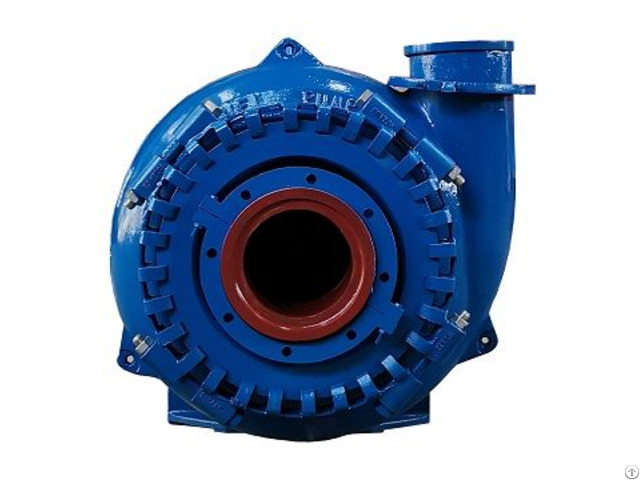

Sand Dredging Pump 8 6e G - China

price: contact company for price

Brand: CNSME

Model Number: SG/200F

Certificate: CE/ISO

Place of Origin: Hebei, China

Minimum Order Quantity: 1set

Delivery Time: 10-14 days

Payment Terms: T/T 100% deposit

Supply Ability: 500 sets per month

Packaging Details: Wooden crate

Introduction:

Pump Model: SG/150E

The SG range of dredge and gravel pumps is designed to provide continuous pumping of highly abrasive slurries containing large particles at high maintained efficiencies with low maintenance and ownership costs.

The impeller fitted to our SG heavy duty gravel pumps is the closed type with three vanes, which allow the impeller to pass large rocks.

The heavy-duty dredge pump is specifically designed for low head duties such as hopper dredging and barge loading.

The slurry pump is one of the main components of the dredger, and it is critical for achieving production.

Dredge pumps also have the biggest power consumption during operation so efforts to reduce the pump’s power needs through smarter design are critical.

Features of Sand Dredging Pumps:

Enhanced Performance; Enhanced Efficiencies; Enhanced Abrasion Resistance

Longer casing life- The large volume of the casing reduces internal velocities resulting in reduced wear;

Lost production time is reduced and screening is avoided- Because the internal proportions of the Dredge and Gravel pump ranges allow extraordinary large particles to be passed.

Long component life with no need for wear rings- The special shape of the impeller vanes and casing combine with side sealing vanes to reduce recirculation down the front of the impeller and exclude abrasive solids from between the impeller and casing.

Reduced leakage and wear- Side sealing vanes on the shaft side of the impeller reduce gland pressure and intrusion of solids into the gland area.

Applications:

Sand and Gravel; Hydraulic Mining; Sugar Beet & Other Root Vegetables; Slag Granulation; Tunnelling.


Company Contact:


  • Phone: +86 0311 66692398

  • Address: 260# West Huaian Road, Shijiazhuang , Hebei , China

  • Email: Email


Published date: November 4, 2021

  • Business Description: Shijiazhuang Minerals Equipment Co., Ltd. is a professional Slurry Pump supplier in China.

    We are engaged in the manufacturing and production of heavy-duty and severe-duty slurry pumps and spare parts.

    Being manufactured at the highest standards, our pumps can guarantee longer service life, higher performance, easier operation, and maintenance.

    They are widely used in mining, mineral processing, tailings disposal, dredging, construction, metallurgy, power plants, sewage water treatment, as well as chemical and petroleum industry.

    With decades of development, we have built a complete system of slurry pump design, selection, application, and maintenance.

    We devote ourselves to offering the solutions of slurry pump applications for customers from all over the world.

    Our team consists of a global pool of highly dedicated people working closely together to ensure our customers' success.
