S Sh Single Stage Double Suction Centrifugal Pump - China

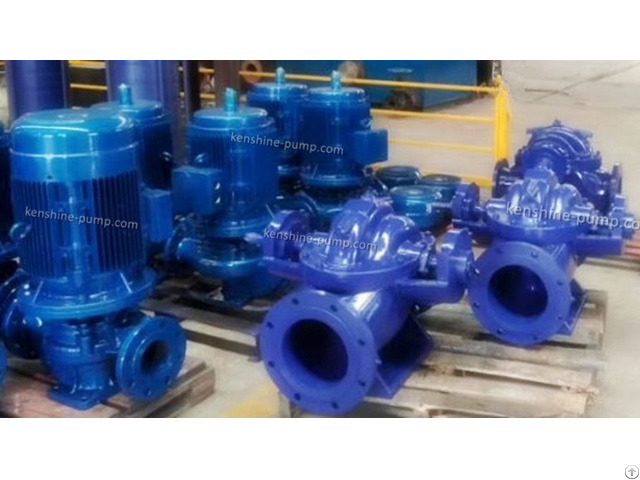

Single stage horizontal split case double suction centrifugal pump is made of cast iron and driven motor.

The pump is used to transfer the water or other similar liquid no higher than 80 degree celsius.

S, SH split case double suction centrifugal pump vertical or horizontal structure.

The suction inlet and discharge outlet of the S split case double suction pump are both below the axis line of the pump and in horizontal direction to the shaft.

Easy maintenance, no need to disassemble inlet and outlet pipelines and motors, high efficiency and energy saving, wide application range.

S single-stage double-suction horizontal split case centrifugal pump is a new type of energy-saving horizontal centrifugal pump.

The pump is mainly composed of the pump body, pump cover, shaft, impeller, seal ring, shaft sleeve, bearing parts, etc.

Its suction inlet and outlet are below the axis line of the water pump.

During maintenance, as long as the pump cover is lifted, all parts can be removed for maintenance.

S Single stage double suction centrifugal pump is used to convey clean water or other liquids with similar physical and chemical properties to water.

According to user requirements, the pump can be also used for conveying sediment water or various corrosive liquids by changing the pump structure and material.

Its performance conforms to JB/1050-93 single suction double suction clean water centrifugal pump type and basic parameters standard.

Range of application Applicable to factories, mines, urban water supply, power stations, tap water, farmland irrigation and various water conservancy projects.

Model meaning: 300 S 90 A 300 -- suction diameter (mm) S - single stage double suction centrifugal pump 90 -- design head (m) A -- the impeller is cut for the first time Technical parameters Flow rate: 80 to 15000 m3 / h Head: 19 to 100m Speed: 1450 to 2900 r/min Inlet and outlet diameter: 10 to 500mm Temperature range: not more than 80 degree Celsius Working pressure: ≤ 1.6mpa
