N Condensate Water Pump - China

N type Condensate water pump is used for conveying condensate water with temperature less than 120℃ or other liquid with physical and chemical properties similar to clear water.

NB, NBA type pumps are used for condensate water in condensers with temperature less than 80℃ or condensate water from 750-3000 kw steam turbine generator sets and other similar occasions.

Performance range:

Flow (Q): 10-100m3/h

Head(H): 12-141m

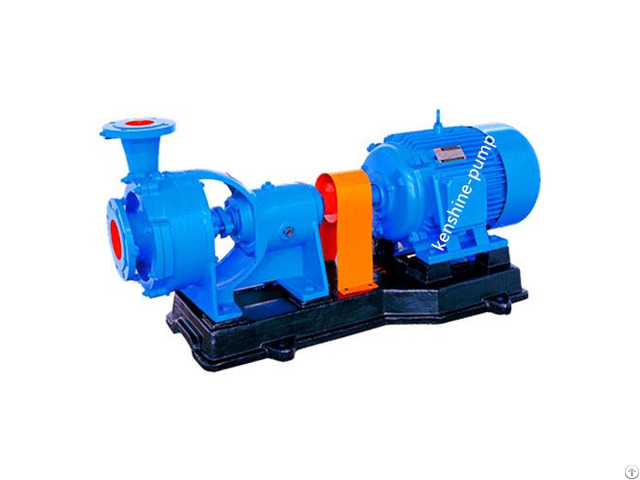

N type condensate water pump

3 n6x2

3 -- the inlet diameter of the pump is 3 inches

N -- horizontal cantilever condensing pump

6 – Head is divided by 10

2 -- the pump series is 2 stages

NB 100-45

100 -- the inlet diameter of the pump is 100mm

N – condensate water pump

B - the suspension frame

45 – Head: 45m

Structure of N-type condensate water pump:

N, NB, NBA pumps are single-stage single-suction cantilever centrifugal pumps, N type has two-stage structure, the rest are horizontal structure.

There are two types of pump with and without inducer.

Compact structure, stable and reliable operation, high efficiency, good cavitation resistance.

Use of standardized design, high degree of standardization and good versatility.

flow parts material: cast steel or stainless steel, also can choose different materials according to user requirements.
