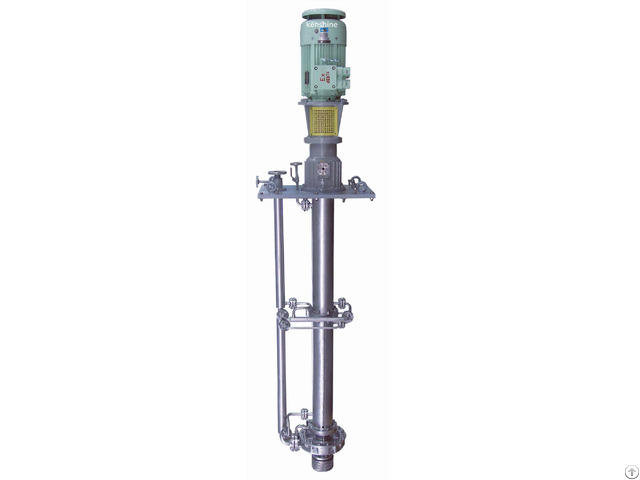

Lhy Heat Preservation Submersible Liquid Sulphur Pump - China

LHY heat preservation submerged Sulphur fluid pump is suitable to transport liquid Sulphur with the temperature 130 to 158 DegC in various sulfuric acid production processes.

LHY heat preservation submerged Sulphur fluid pump is also suitable for other chemical processes that require low flow and high lift.

LHY series vertical liquid sulfur pump has the feature of small flow rate and low head.

LHY heat preservation liquid sulfur pump has simple structure, easy maintenance, stable operation and stable performance.

Pump material: SUS04, SS316, SS316L, duplex stainless steel, Hastelloy etc.

YB series explosion-proof motor is generally used in transporting liquid sulfur and other inflammable medium.

Performance range:

Traffic: 0.2-10 m3 / h

Head: 40-120 - m

Speed: 2900 r/min

Applicable temperature range: t<=200 ° c, applicable temperature can be raised to 550 ° c with special manufacturing techniques.

Model significance: for example, LHY-1/80

LHY- series code

1- pump flow (m3/h) 80- pump head (m)

Structural characteristics of

1 - This series of pumps is a vertical thermal insulation liquid pump.

The outlet pipe of the pump is from the pump body, and the front cover of the pump is provided with steam or heat conduction oil insulation jacket.

2 - This series of pumps are mainly composed of pump body, impeller, front pump cover, pump shaft, elbow pipe, outlet pipe, intermediate pipe, bottom plate, bearing box, motor seat and other parts.

3 - The impeller of this series of pumps is a star structure.

Its structure is simple, the manufacture is convenient.

Impeller open a balance hole to balance the axial force, the axial force can basically be considered completely balanced off, for the operation of the pump has great benefits.

4 - This series can be seen from the motor end as anticlockwise.

5 - The installation size of this series of pumps can be customized according to customer requirements.
