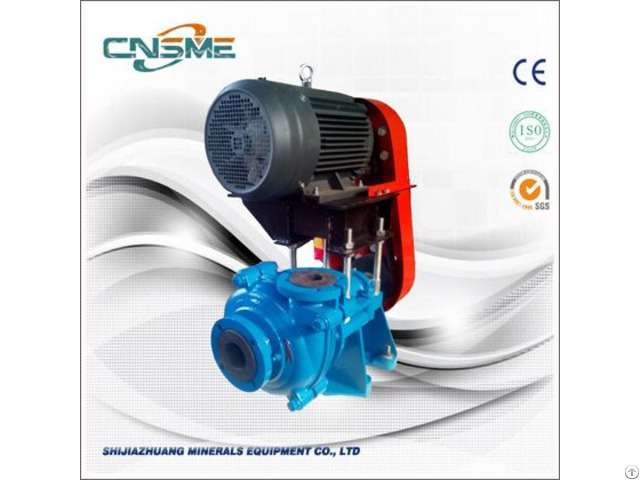

Impeller Corrosion Resistant Rubber Pump 2 Inch - China

price: contact company for price

Brand: CNSME

Model Number: SHR/50C

Certificate: CE/ISO

Place of Origin: Hebei, China

Minimum Order Quantity: 1set

Delivery Time: 7-15 working days

Packaging Details: Standard export packaging

Payment Terms: T/T, Western Union

Supply Ability: 100 Sets per Month

● Flow rate: 39-86m3/hr

● Head H(m): 13-46

● Speed: 1300-2700rpm

● Efficiency: Max55%

● Materials: Impeller R55

● Impeller: 5-Vane Open Type

● Vane Diameter(mm): 215

● Power: Max 30Kw

● Color: Depend on customers’ requirements

● Weight: 154KG

● NPSH (m): 4-6

● Warranty: 1 year Warranty (except wet-end parts)

Introduction:

The advantages of SHR/50C rubber lined slurry pump:

1 - Anti-corrosive rubber liner has features of a wide range of performance, high efficiency, and high-performance cost ratio.

2 - Rubber liner is light, thus easy to install and maintain.

3 - As the name suggests, the anti-corrosive rubber liner is made of rubber which is of high elasticity and chemical stability.

The rubber also absorbs noise and vibration, which is more anti-corrosive than high chromium alloy.

4 - Some metallurgy design and research institutes and universities of science and technology provide lots of technological supports.

Thus, our rubber discharge end is trustworthy and effective.

5 - A series of quality tests are carried out when a rubber liner is being used.

Specifications:

Pump Model SHR/50C

Outlet 2-inch

Capacity 39-86.6m3/h

TDH 13-46m

Rated Motor Power 30Kw

Speed 1300-2300r/min

NPSH 2-4m

Construction of Rubber Slurry Pump: Typical Applications:

Tailings

Heavy Mining

Ash Handling

Cyclone Feeds

Pulp and Paper

Corrosive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Heavy Refusal Removal

SME SHR Slurry pumps are designed for the toughest slurry applications


Company Contact:


  • Phone: +86 0311 66692398

  • Address: 260# West Huaian Road, Shijiazhuang , Hebei , China

  • Email: Email


Published date: November 4, 2021

  • Business Description: Shijiazhuang Minerals Equipment Co., Ltd. is a professional Slurry Pump supplier in China.

    We are engaged in the manufacturing and production of heavy-duty and severe-duty slurry pumps and spare parts.

    Being manufactured at the highest standards, our pumps can guarantee longer service life, higher performance, easier operation, and maintenance.

    They are widely used in mining, mineral processing, tailings disposal, dredging, construction, metallurgy, power plants, sewage water treatment, as well as chemical and petroleum industry.

    With decades of development, we have built a complete system of slurry pump design, selection, application, and maintenance.

    We devote ourselves to offering the solutions of slurry pump applications for customers from all over the world.

    Our team consists of a global pool of highly dedicated people working closely together to ensure our customers' success.
