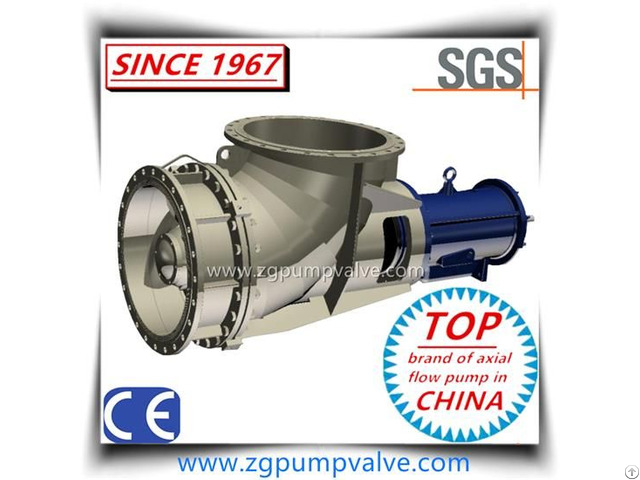

Horizontal Stainless Steel Ss304 Axial Flow Pump - Chinaprice: 10000.00 Dollar US$
Horizontal Stainless Steel SS304 Axial Flow Pump Brief introduction: Owns 8 patent technologies, the comprehensive performance of ZW axial flow pump ranks in top among all the local competitors in China.
It is a product of provincial achievement, and it gained the award of technology progress of China machinery industry.
There are plenty of real sales achievements for every single specification from diameter 250 mm to 1500 mm.
ZW axial flow pump is widely used as forced circulation pump in the applications of big flow rate with low total head, for example: MVR water treatment, vacuum salt, aluminum oxide, sodium sulfate, chlorine-alkali, sugar making, seawater desalination.
Parameters: Flow rate: Q=250~55000(m³/h)
Total head: H=8~1.5 (m)
g: γ ≤1.5
Fluid temperature: T=0~180ºC
Fluid viscosity: ν≤600(mm2/s)
Pump diameter: Ф250mm~1800mm Structure: 1 - Elbow structure for pump body, piece-welded body and casted body for selection.
2 - Pump impeller is cantilever type with spherical hub, impeller blades are adjustable.
3 - Pump shaft adopts butt welding workmanship, the wetted parts or possible wetted parts are made from stainless steel or other corrosive materials.
4 - Mechanical seal and packing seal can be interchangeable.
5 - Adopting cartridge mechanical seal, reliable and easy for maintenance.
6 - Enlarged cylinder type bearing housing with oil level glass and oil filler, which extends the bearing life and interval of lubricant changing.
7 - Pump and be driven by motor through V -belts, gear box or directly through couplings.
For pipe hung pump, the universal joint transmission must be adopted if the motor ≥200kW Horizontal Stainless Steel SS304 Axial Flow Pump Applications: 1 - Salt-making force circulation pump
2 - Sodium sulfate force circulation pump
3 - Aluminum oxide force circulation pump
4 - Sugar-making force circulation pump
5 - Chlorine alkali force circulation pump
6 - MVR water treatment force circulation pump
- Posted By: Sichuan Zigong Pump & Valve Co., Ltd.
- Phone: +8613738006567
- Address: No.56, Golden Hill Rd, Hi-Tech Industrial Zone, Yantan District, Zigong, Sichuan Province, Sichuan , Zigong , China
- Website: https://www.zgpumpvalve.com/
Published date: December 15, 2021
- Business Description: Sichuan Zigong Pump & Valve Co., Ltd. shorted as Zigong Pump & Valve, is the biggest chemical pump manufacturer with full specifications in West China.
It was formerly known as Zigong Pump Factory which was designated as the key manufacturer of slurry pumps and anti-corrosive pumps by the former Mechanical & Industrial Ministry of China.
Now after decades' development, successfully Zigong Pump & Valve ranked itself as the essential company and is selected as the council member of Pump industrial branch of CGMA(China General Machinery Association)
Located in National High-Tech Industrial Zone of Zigong City, with 160 million RMB registered capital(approximately 26 million US dollar), Zigong Pump & Valve covers an area of 96,700 ㎡which enable the annual capacity of around 10,000 pieces pumps in various series and sizes.
The leading products of Zigong Pump & Valve covers four categories of slurry pumps, chemical pumps, water pumps and petrochemical pumps, including more than 600 specifications of 41 series.
All the products are widely used in chemical, petrochemical, metallurgy, mining, textile, environment protection, electricity and public facilities, etc.
As a High-Tech enterprise and a provincial level technical center, Zigong Pump & Valve built up a graduate workstation of fluid machinery and engineering with West China University.
And by deeply working with famous design companies and universities, Zigong Pump & Valve is able to continuously focus on R & D, and provide customers optimized pump solutions.
Also as the biggest chemical pump manufacturer in West China, Zigong Pump & Valve owns the most advanced pump testing center and other advanced facilities as CNC boring and milling machining center,5 meter and 3.5 meter CNC vertical lathe, resin-bonded sand process line of 20T/h, 3tAOD refining system,instant spectrum metal analyzer, etc.
The mature management and strict quality control system enable Zigong Pump & Valve to pass the authentication of ISO9001: 2008, and to obtain the "National License of Industrial Products" and "Safety Certificate of Mining Machinery".
Zigong Pump & Valve owns over 17 branch offices scatter among the key cities, forming the sales and after sales service network through out the whole country.
