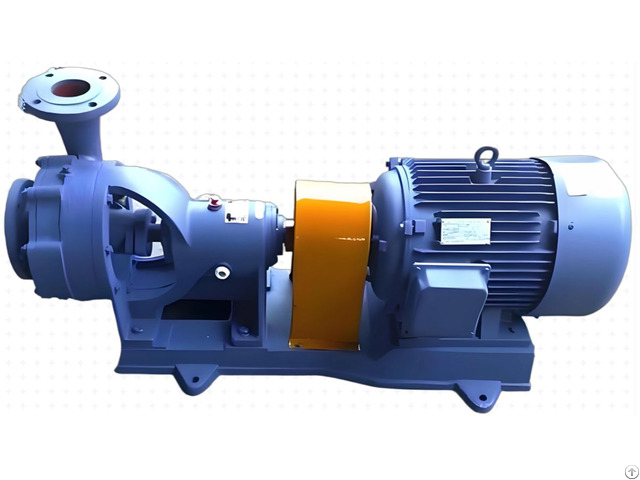

Gn Centrifugal Condensate Water Pump At 80 To 120 Degree Celsius - China

Centrifugal Condensate water pump is a special type of centrifugal pump designed for transporting high-temperature condensate water (such as turbine condensate water); The core difference between the two lies in their adaptability to working conditions, structural materials, and sealing design, rather than their working principles.

Different uses: Ordinary centrifugal pumps are used for general liquids (water, oil, chemical media, etc.

); Condensed centrifugal water pumps are specialized for high-temperature (usually 80-120 ℃), clean, low-pressure condensed water or saturated water, commonly used in power plants and heating systems.

Structural strengthening: Condenser pumps are often made of heat-resistant materials (such as cast steel and stainless steel), and the design of the suction chamber is optimized (such as raising the suction port and installing a suction valve) to enhance their anti cavitation ability; The structure of ordinary centrifugal pumps is more universal, and the material depends on the medium (such as cast iron, carbon steel).

Sealing and bearings: Condenser pumps are often equipped with packing seals or mechanical seals+cooling water flushing to cope with high temperature and low cavitation allowance conditions; There are various sealing forms for ordinary centrifugal pumps, but high temperature/low NPSH optimization is not necessary.

Installation requirements: The condenser pump has higher requirements for shaft alignment accuracy (≤ 0.1mm) and pipeline support, as it is often directly connected to the turbine and sensitive to vibration; The installation standards for ordinary centrifugal pumps are relatively loose.

Classification: Condensed centrifugal water pumps belong to the subcategory of centrifugal pumps, which can be single-stage or multi-stage according to the number of impeller stages.

However, "condensing pumps" do not constitute an independent working principle classification - all condensing pumps are based on centrifugal force infusion.

In short, the condensate centrifugal water pump=centrifugal pump+high-temperature condensate water working condition special optimization, not a pump type parallel to the centrifugal pump.

Company Contact:

• Posted By: Zhangjiagang free trade zone kenshine international trading Co.,LTD

• Phone: +8651258583352

• Address: Room 216-108, Textile resources market, Zhangjiagang , SUZHOU , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Our company is specialized in water pumps, electromechanical equipments and accessories etc for many years:

  …Various fluid pumps(centrifugal pump, chemical industrial pump, submersible pump, self priming pump, sewage pump, electromagnetic pump, diaphragm pump, gear pump, screw pump etc and their parts such as mechanical seal, pump casings, coupling, impellers etc)

  …Oil drilling equipments and parts (triplex mud pump, mud valve, drilling motor, drilling bits and parts of mud pumps such as piston, cylinder, valves and seats etc)

  …Mechanical parts and tools, instruments etc
