Chlf Light Duty Horizontal Multistage Stainless Steel Pump - China

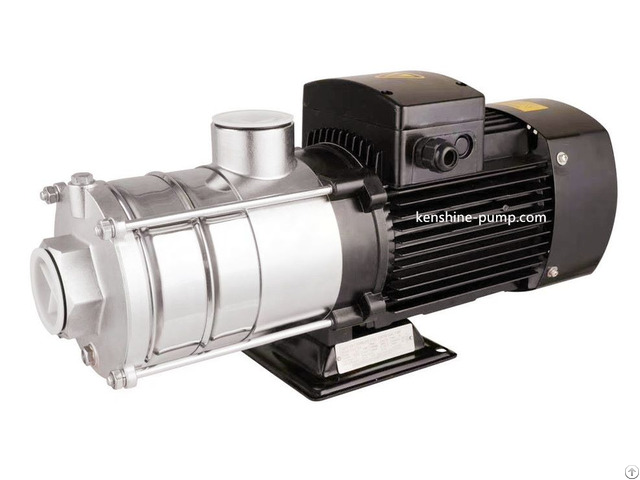

Light duty Horizontal stainless steel multistage pump

Non-self-priming centrifugal pump is equipped with a lengthened shaft motor and maintenance free mechanical seal.

The compact structure makes the pump size very small with axial inlet and radial outlet.

Light duty multi-section multi-stage centrifugal pump is made of stainless steel material (304 or 316) and it has low noise, light corrosion resistance, beautiful appearance, small size, light weight, long service life, no leakage, smooth operation, and simple and reasonable structure.

Scope of application:

CHL, CHLK and CHLF (T) type light duty multistage centrifugal pumps are mainly used for household central air conditioning circulation and industrial liquid transmission such as demineralized water, soft water, purification system, light oil and other circulation and pressurization.

1) Small central air conditioning cycle

2) Cooling system

3) industrial cleaning

4) Water treatment (water purification)

5) Aquaculture

6) Fertilization/metering system

7) Environmental applications

Working conditions:

A liquid that is thin, clean, non-condensable, nonexplosive, and contains no solid particles or fibers.

Liquid temperature: normal temperature -15℃ to +70℃

Hot water type +70℃ to +110℃

Maximum ambient temperature: +40℃

Maximum operating pressure: 10 bar

The maximum inlet pressure is limited by the maximum operating pressure

Medium acidity and alkalinity: pH4 to 9

Pumped liquid:

1 - Thin, clean, non-flammable and explosive liquid without solid particles or fibers.

2, pump can transport such as mineral water, softened water, pure water, oil and other light chemical medium.

3, when the conveying liquid density or viscosity is greater than water, if necessary, must be equipped with high-power motor.

4 - Whether the pump is suitable for a particular liquid is determined by a variety of factors, the most important of which is the chlorine content, pH value, temperature and solubility, oil content, etc.

motor fully enclosed, air-cooled motor

Protection class: IP55

Insulation grade: F

Standard voltage, 50 hz:

1 x 220-240 - v

3 x 220-240 - v

380-415V
