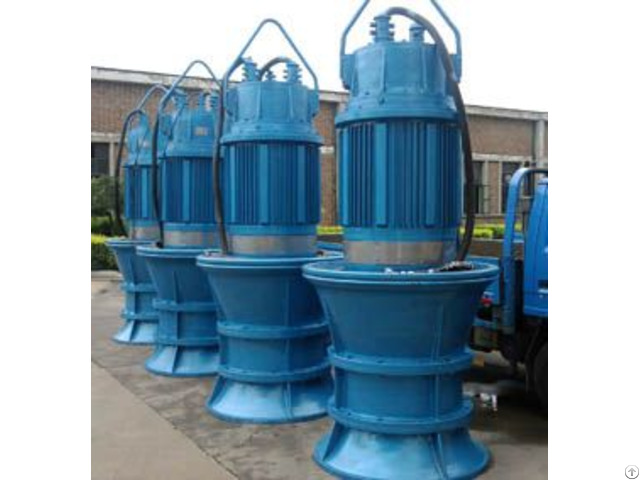

Axial Flow Pump - China

price: 100.00 Dollar US$

Axial Flow Pump

Products Photos Catalog Axial Flow Pump Photos Catalog

Appropriate for pumping clear water or lightly contaminated water.

Used to flood to flood control and drainage farmland irrigation, water supply projects, etc.

Power: 5.5-1500 KW

Discharge: 116 -10689 l/s

Head: 1.1-16.44 m (3.6- 54 feet)

Pump Outlet Diameter: 350-1400mm (13.7-55.1 inch)

Dia.

Of Impeller: 267-1540mm (10.5-60.6 inch)

Rotate Speed: 485-1450 r/min

Angle of Impeller Installation: from -6 deg.

to +6 deg.

Ph Value: 6-9

Operating limits:

Maximum ambient temperature 50 deg.

C

Motor:

1 - Rewindable, dry-type, whole sealing and three-phase asynchronous motor

2 - Insulation Grade: F

3 - Protection Grade: IP68

4 - Double/Triple mechanical sealing

5 - Equipped with special control cabinet

6 - Voltage: 380-10000V

7 - Frequency: 50-60Hz

Materials:

1 - Pump body: cast iron

2 - Impeller: stainless steel

3 - Shaft with rotor: #45 steel

Advantages:

1)The integration of pump body and motor without other assembly process

2)Saving price 30-40% comparing with the ground sewage pump station with the civil and structural engineering.

3)Lower noise and underground pump station.

4)Easy, reliable and steady operation, realizing remote control.

5)Greater weight for same bulk

6)Completely meeting power standard by testing
