Airflow Type Wood Sawdust Dryer - China

Introduction

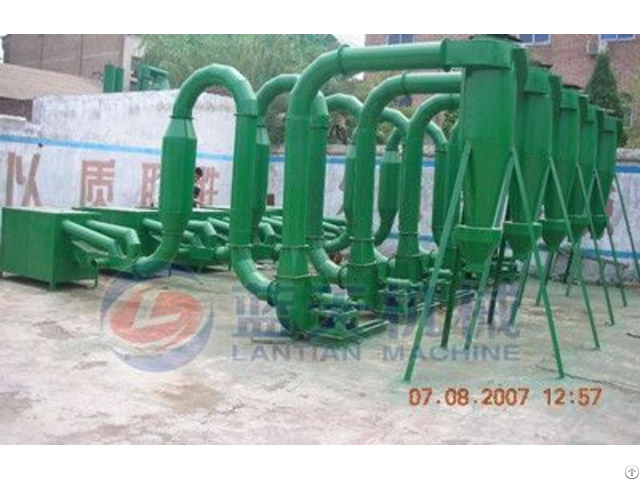

Airflow type dryer, also called pipeline type drier, adopting twice circulate heating system, is our newly advanced drying equipments, and shows the features of automatic feeding, high hot air flow speed, fully mixing of airflow and materials, big drying strength, lower dust and bigger drying capacity.

Moisture in the raw material of less than 40% can be dried one time to meet the requirement for making wood briquette, which greatly reduced the labor intensity compared with commonly used drier.

Application

1 - Size of raw material: less than 5 mm

2 - Moisture of raw material: less than 40% Technical Parameters Model SLD-1 SLD-2 SLD-3

Motor Power 4 kw 5.5 kw 7.5 kw

Capacity (kg/h) 200-300 600-1000 1000-1400

Feeding Size 3-5 mm 3-5 mm 3-5 mm

Weight 1200 kg 1600 kg 2100 kg Sawdust rotary dryer is used to dry the high moisture wood for a large amount output, wood dryer is a kind of machine with a rotating cylinder which is a little bit incline.

It is widely used in building material, metallurgy, chemical industry, cement to dry the slag, limestone, coal powder, clay, etc.

It is simply structure, polished manufacture, high capacity, low consumption, convenient transportation and so on.

Also, this machine can be used to dry some other materials, such as coal, sand, peat, cassava slag, mineral powder, sludge, etc.

Application 1 - Used to dry big amount sawdust

2 - Size of wood should less than 1 cm Technical Parameters Model Diameter(mm) Length (m) Motor Power Capacity (kg/h)

Φ 0.6*8 Φ 600 8 4 kw 800-1000

Φ0.8*10 Φ 800 10 4 kw 1000-1500

Φ1.0*10 Φ 1000 10 5.5 kw 1500-2000

Φ1.2*12 Φ 1200 12 11 kw 2000-2500

Φ1.5*12 Φ 1500 12 15 kw 2500-3000

Φ1.8*14 Φ 1800 14 30 kw 3000-4000

Φ2.2*18 Φ 2200 18 37 kw 4000-5000 Please leave your contact information and we will get back to you as soon as possible.
