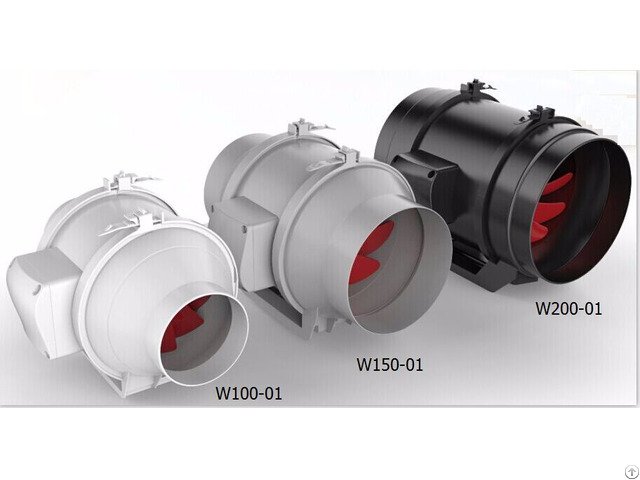

New Arrived Ventilation Fan 4 Inch 6 Inch 8 Inch - China

Dimensions and technical details 220 - 240 Volt/ 50 Hertz or 110 - 120 Volt/ 60 Hertz Material: self-extinguishing PP material

Color: white/ black

Encapsulated, ball-bearing 3 speed motor with thermal overload protection With energy-saving, brushless AC motor, 3 speeds via 3-speed controller (please order separately), environmental sensors can be added Type: motor can be controlled with transformers or continuously adjustable controllers (please order separately) Performance: newly developed diagonal impeller ensures high airflow and pressure resistance

Easy to install: mounting in a horizontal or vertical position, also in rectangle ducts

Device with long, trouble-free service life

Electric terminal box (with airtight sealing) can be rotated at a 360° angle Motor unit can be removed easily (mounted with quick clamp, no tools required) Mounting material: screws, dowels and cable feedthrough are included in the delivery Combination: installing the Lineo in series doubles the pressure, installing them in parallel doubles the airflow Models with exposed air outlet (requires protective grille) and inlet on the duct

IPX4 splash water rating, protection class II

Max.

ambient temperature for continuous operation: 60° C

Service life: ca.

50, 000 h

Ideal for application in closed quarters Environmentally-friendly material: all synthetic parts can be dismantled and recycled.

Sensors with humidity control, room temperature, cigarett smoke and motion detection can be added
