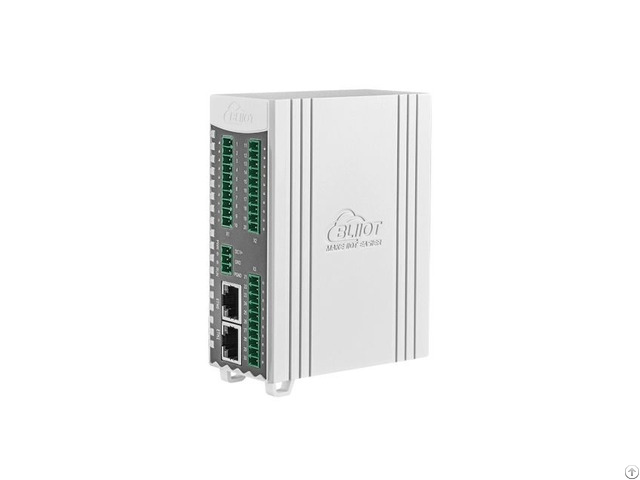

Bliiot Bl191 Opc Ua Edge I O Module - China

The BL191 is an IOy series industrial-grade multifunction programmable OPC UA remote I/O module.

It adopts electrical isolation technology, has passed EMC/EMI tests and -45 to 80°C high and low temperature verification, and features a built-in independent hardware watchdog to ensure long-term stable operation in harsh environments.

Key Features:

√High cost-performance: Up to 80% lower cost than traditional solutions combining PLC + I/O + protocol gateway.

√Communication Interface: Equipped with two 10/100M adaptive Ethernet ports, supportingOPC UAserver protocol and cascading.

√Data Acquisition: One isolated RS485 port supports Modbus RTU master mode, enabling data collection from smart meters and conversion to OPC UA.

√Secure Communication: Supports X.

509 certificates, AES-256 encrypted communication, and role-based policies, complying with the IEC62443 industrial cybersecurity standard.

√Logic Control: Built-in web server enables fast implementation of register operations and logic control, serving as a PLC alternative.

√Remote Configuration: Supports quick configuration and programming via web interface for efficient data acquisition and control.

√Remote Maintenance: Integrated with BLRAT (Beilai Remote Access Tool), allowing remote firmware upgrades and parameter configuration.

√Flexibl e Expansion: Provides 1 to 3 I/O expansion slots for flexible combination of I/O boards, adaptable to various industrial applications.

Typical Application Areas:

√Smart Manufacturing and Industrial Automation

√Building Automation and Smart Home Management

√Agriculture and Environmental Management

√IoT Environmental Monitoring System

√Industrial Network Communication and Data Acquisition

√Energy Storage System Monitoring

√Robotic Arm Control and I/O Signal Acquisition

√Subway Station Equipment Monitoring

√Wind Power Generation Monitoring
