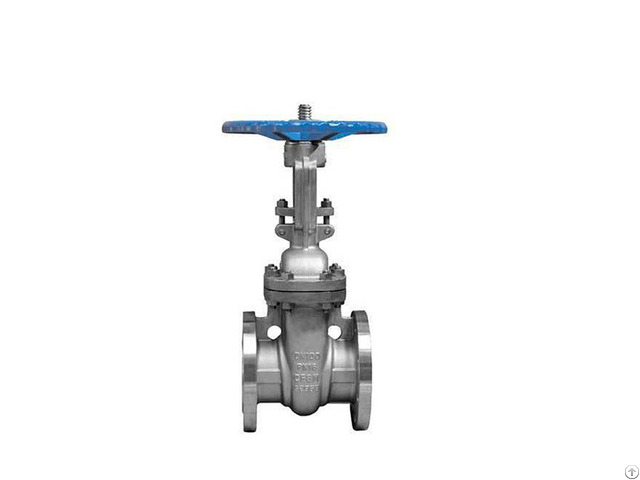

Din Pn 16 Stainless Steel Flanged Gate Valve - China

price: check with company for price

Application and Specification 1 2”~48”(DN50~DN1200) 2 W.P.:PN 10-PN 64 3 W. T.: -20℃~400℃ (-4℉~752℉) 4 Design: DIN3352 5 Face to Face DIN3202 6 Inspection & Test: API598 7 Flange Dimension: EN1092-1:2007 8 Operation: Handwheel, Worm gear Main Parts and Materials Part Name: Material Body: GS-C25 1.4408/1.4308 Disc: GS-C25 1.4408/1.4308 Bonnet: GS-C25 1.4408/1.4308 Bonnet nut: AISI304 Bonnet bolt: AISI304 Hinge pin: AISI304 Eye bolt: AISI304 Gland: GS-C25/1.4308 Nut: AISI304 Hand wheel: FCD Nut: Bronze Stem: SS410/304/316 Name plate: AISI304 Spring: Bronze Yoke sleeve: Bronze Spring washer: AISI304 Gland packing: PTFE Packing: PTFE Seal: PTFE/304+Graphite


Company Contact:


  • Phone: +8613506511164

  • Address: Rm.3-8110,LOFT8, NO.8 Liming industry zone,Binjiang sub-district, wenzhou, zhejiang, China

  • Email: Email


Published date: September 1, 2019 -

  • Business Description: Wenzhou Xinsy Technology Co., Ltd. is as a lead supplier and exporter of stainless steel valve from Wenzhou China. We pursuit of Safety First, High quality with good price, technology innovation and service to the heart. Castings direct from own foundry and products processed by digital control machine. We offer wild range of the valve with API, ANSI, JIS, DIN, GB, BS, KS standard. The material used is as WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc. The Pressure is from CL150 to CL2500, working temperature can be -20 to 400 centigrade, wildly used in oil, gas, chemical, petrochemical pulp, paper, water, waste water, marine.
    OEM & ODM are welcome.
