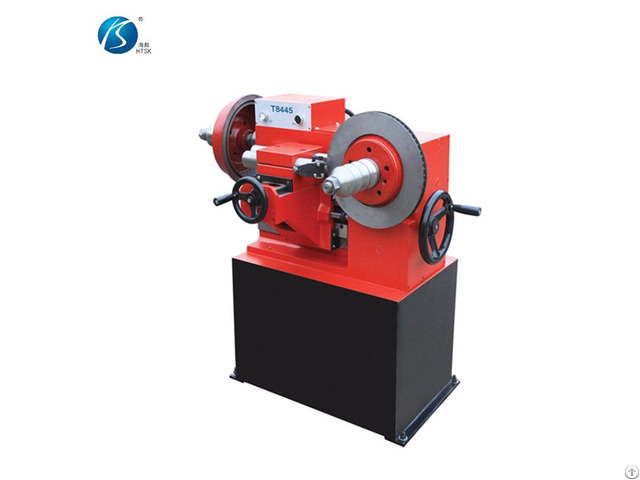

Brake Drum Disc Repair Lathe T8445 - China

Main features:

1.1 It can fulfill the repair of brake drum, brake disc ＆ brake shoe of automobiles from mini to medium.

1.2 The maximum size: brake drum is 450mm, Brake disc is 400mm.

1.3 Gearbox is lubricated with oil pump.

1.4 Mainly for cutting brake drum/disc of car or minibus.

Main specifications:

Item

Unit

T8445

Brake drum diameter

mm

φ180-φ450

Brake disc diameter

mm

≤400

Working travel

mm

170

Spindle rotation speed

rpm

30, 52, 85

Feeding capacity

mm/r

0.16

Main motor

Kw/rpm

1.1/1400

Overall dimensions(L×W×H)

mm

690×890×880

Net weight

Kg

320
