Xwd 475 10 And 16 Row Rotary Corn Header - China

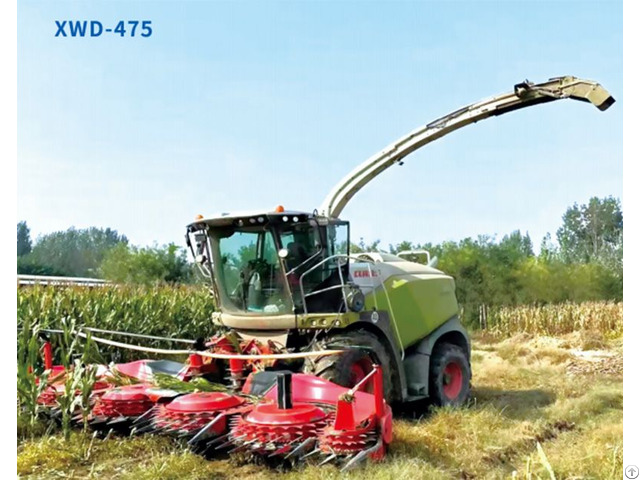

The XWD-475 corn header is a 7.5m harvesting width 10 row corn header manufactured by Xinwanda, it can harvest 16 row in a maize field with 50cm row width.

The main beam has multiple reinforcement points, which is more firm and not easy to deform.

After the optimization and upgrading of the corn header feeding channel, the feeding is more smooth when harvesting high-yield crops.

Equipped with double water cooled clutch left and right side protection, it can effectively reduce the working temperature of the clutch plate and reduce the burning plate and transmission failure caused by high temperature.

The structural parts are made of special grade of agricultural machinery steel developed by Hebei Iron and Steel Group Research Institute to ensure that the silage cutting table has the characteristics of high precision, high wear resistance, high strength impact resistance and not easy to deformation.

The high-strength wear-resistant steel enhanced the strength and life by more than 3 times, and the unique drum design can feed smoothly during high-yield crops and fall harvesting.

Toothed blade life has been increased 3-5 times by changing the design of teeth and surface treatment with tungsten carbide.

The transmission box is made of high-strength aluminum alloy casting, which has the advantages of light weight, high strength, low noise and fast heat dissipation.

All the internal parts of the transmission box are processed and manufactured according to the standards of the automotive industry and engineering machinery, with reliable operation and low failure rate.

All the internal parts of the transmission box are manufactured and assembled according to the standards of well-known companies such as "Japan Aisin" and "Sumitomo Construction Machinery".

Through the hanger change can be mounted on Claas, John Deere, New Holland, Fendt, Krone with hoesepower more than 700HP.

The multi-angle crop divider realizes non-row harvesting and can cut in at any angle, reducing the limitations of users during the harvesting process and can greatly improve the harvesting speed and harvest yield.

Technical Parameters

Speed of Operation(km/h) 6~16 Sizes in working condition(m)： 7.5*2.5*1.5

Min cutting Height(mm)： 150 Min.

ground clearance(mm)： 100

Structrual Weight(kg)： 3000 Transport width(m)： 3.1

Harvesting Width(m) 7.5 Matching Power range(kw)： ＞530

Structural Style Mounted Size for transportation(m) 3.1*2.2*3.5
