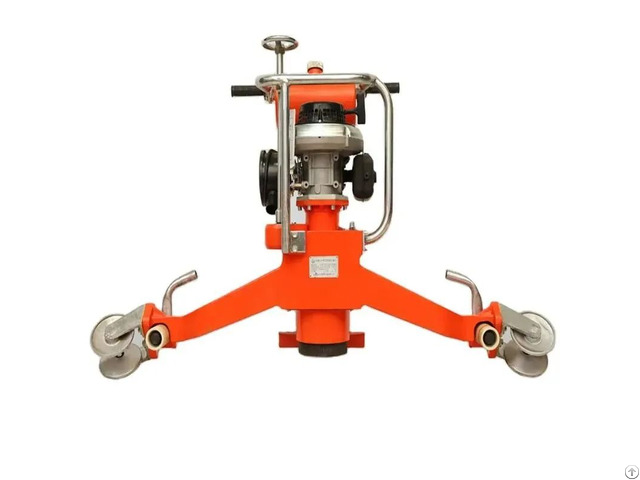

Ngm 6 0 Internal Combustion Rail Profile Grinding Machine - China

This Rail Profile Grinding Machine is powered by the M165 two-stroke petrol engine imported from Spain.

It is a small machine used for forming and grinding the rail head welding joints and surface repairs.

It is suitable for rails of 43~75kg/m.

The special diaphragm carburetor make sure the engine does not stall after turning 90°, and the output torque is stable without power attenuation, thus ensuring the precision of rail grinding.

Model NO.

NGM-6.0 Grinding Stone Speed More Than 3900r/Min Grinding Stone Inclination 0~90 Dimensions (L x W x H) (mm) 1410*500*850mm Grinding Stone Feeding Stroke 42mm Fuel Tank Volume 4.5L Product Name Rail Profile Grinding Machine Feed Adjustment Accuracy 0.125mm Engine 2 Stroke Petrol Engine M165 Grinding Stone Specification 150*55*70mm Transport Package Wooden Case Trademark Linkage Origin Hubei, China
