Lj Jdq I Railway Track Gauge Calibrator - China
price: 12000.00 Dollar US$

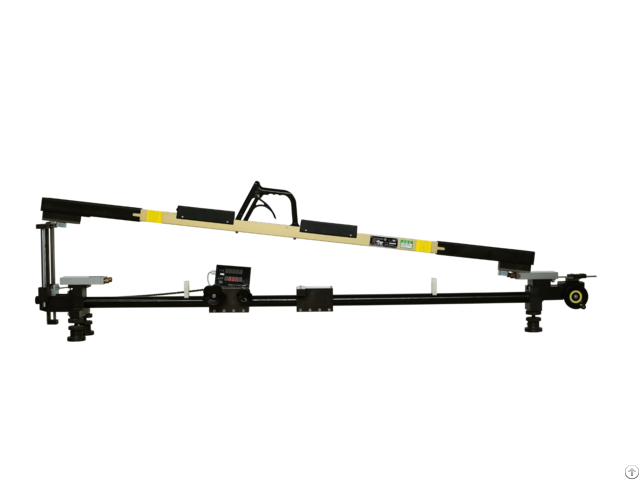

Track Gauge Calibration Device
The calibrator is a railway measuring instrument that used to calibrate the 1435mm track gauge, the guard rail check gauge, the guard rail face gauge and the super-elevation.
Product Parameters
Model Calibration Measurement range Max error LJ-JDQ-I Track gauge 1410~1470 Zero position ±0.04 Nonzero position ±0.06
Super elevation Super elevation special gauge part 30mm, 60mm, 120mm, 180mm Use according to the measured value ±0.06
Company Contact:
- Posted By: Wuhan linkage track equipment co.,ltd
- Phone: 13247139241
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan City, Hubei Province, China, China
- Email:
- Website: https://www.linkrailtech.com/
Published date: December 27, 2024
- Business Description: General projects: Sales of special equipment, key systems and components for rail transit; Sales of railway special measuring or testing instruments; Sales of electronic measuring instruments; Railway transport equipment sales; Machinery and equipment sales; Import and export of goods; Sales of industrial control computers and systems; Information technology consulting services; Machinery and equipment leasing; Technology import and export; Metrological technical services; Sales of integrated circuit chips and products (except for items subject to approval according to law, independently carry out business activities according to law with business licenses)
