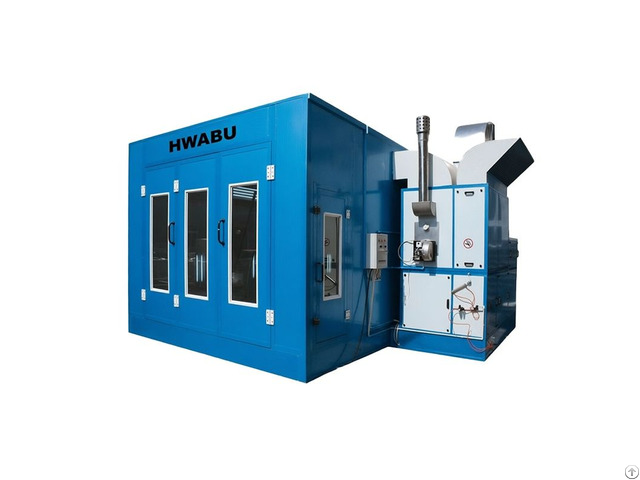

Economy Auto Spray Booth - China

Description: Economy auto spray booth for body shops and repair garages needing practical painting and drying performance with reliable standard configuration.

Economy auto spray booth with 50mm EPS insulated wall panel, 18000m³/h intake capacity, 80°C baking temperature, ≥98% filter efficiency and optional heating systems.

Keywords: Economy Auto Spray Booth

Economy Auto Spray Booth Structure and Main Configuration

Wallboard EPS Insulated Wall Panel 50mm thick steel 0.426mm thick

Basement 300mm height metal-base.

Channel steel(12#) 2 rows of grid plates made by flat bar and round steel 3 rows of embossed plates galvanized

Front Door 3-fold Sheet metal doors

Ramp 2 pieces (Inner ramp and lifting ramp are optional)

Fan 1x 5.5kw Turbo fan

Filter Pre-filter filtering rate>83% Italy SF 600G high efficiency filter(ceiling filter) filtering rate>97% floor filter(fiberglass filter) filtering>70% activated carbon filter.

Lighting 40x22w top lighting

Control Micro-computer programmed controlling Power switch spray/baking switch light switch breakdown alarm emergency stop.

Technical Parameters

Outside size (mm) 7000L*5350W*3250H

Inside size (mm) 6900L*3900W*2650H

Main door width (mm) 3000

Main door height (mm) 2600

Intake fan capacity(m³/h) 18000

Full load indoor speed(m/s) 0.2-0.3

Max.

working temperature(ºC) 80

Heating system Riello brand diesel/gas or electric

Exhaust type Full/Semi/Side downdraft

Efficiency of heat exchange 80%

Filter efficiency ≥98%

Dimensions As optional

Water based device As optional

Environmental protection device As optional

Product Advantages

- Cost-effective automotive spray booth for repair workshops

- 50mm EPS insulated wall panel for practical booth structure

- 300mm metal-base basement with mixed grid and embossed plates

- 5.5kW turbo fan for air intake and exhaust support

- High-efficiency ceiling filter and floor filtration system

- 40 × 22W top lighting for clear working visibility

- Micro-computer programmed control system

- Diesel, gas or electric heating options available

- Full, semi or side downdraft exhaust design optional

The economy auto spray booth is designed for auto repair shops, small and medium body shops, car repainting workshops and service garages that need practical painting and drying performance at a more cost-effective configuration level.

This Automotive Spray Booth keeps the key functions required for vehicle refinishing, including insulated wall panels, stable airflow, filtration, lighting, heating and micro-computer control.

It is suitable for buyers who want a reliable automotive spray booth for daily painting work without choosing an overly complex high-end configuration.

HWABU Spray Booth Applicaton

This economy auto spray booth is suitable for:

- Auto repair shops

- Small and medium car body shops

- Car repainting workshops

- General vehicle maintenance garages

- Used car refurbishment workshops

- Budget-sensitive automotive refinishing projects

- Overseas distributors looking for practical booth models

For workshops that need a standard car spray booth for regular repair and refinishing work, this model provides a balanced choice between function, configuration and project budget.

Filtration System

The economy auto spray booth is equipped with a multi-stage filtration system to help reduce dust and paint mist during spraying and drying.

Filter configuration includes:

- Pre-filter with filtering rate above 83%

- Italy SF 600G high-efficiency ceiling filter with filtering rate above 97%

- Activated carbon filter

The total filter efficiency can reach ≥98%, helping create a cleaner painting space and supporting more stable vehicle refinishing quality.
