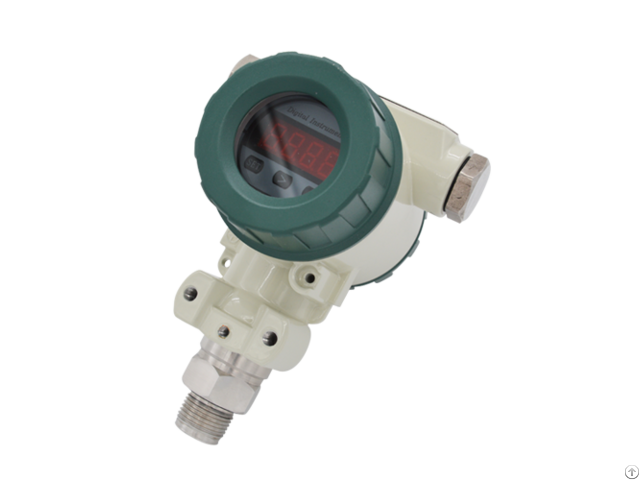

High Protection Led Pressure Transmitter Explosion Proof With Hart - China

With its excellent accuracy and reliability, MPT51 pressure transmitters are widely used in industrial pressure measurement, especially in the coal mines, oil fields, chemical industries, civil explosions, environmental protection, medicine, water affairs, shipping, and other industries.

Features

·LC D digital display

·Wider pressure range;

·Optional pressure port; flush diaphragm type, sanitation type anti-corrosive type are available; protection IP65;

·Optional output signal; local calibration and displayable;

·Reversed-p olarity, transient current & voltage protection, which conform to EMI standard;

·Intrinsic safe ex-proof version conforming to GB3836.4 ExiaII CT6 Regulation; Ex-proof Certificate is issued;

·EXD product conforming to GB3836.2 ExdII CT6 Regulation; EXD Certificate is issued.

Specification

Pressure range: 0~100MPa

Overpressure: 1.5 times FS(min.

value is valid)

Pressure type: gauge, absolute or sealed gauge

Accuracy: 0.2%FS/0.5%FS(typ.

) 1.0%FS(max.

)

Long-term stability: 0.2%FS/year(typ.

0.3%FS/year(max.

)

Zero temp.

drift: 0.03%FS/ºC(≤15PSI); 0.02%FS/ºC(>15PSI)


FS temp.

drift: 0.03%FS/ºC(≤15PSI); 0.02%FS/ºC(>15PSI)


Op eration temp.

-20ºC~85ºC

Storage temp: -40ºC~125ºC

Power supply: 9~36VDC

Output signal: 4~20mADC

Transmitting: 2-wire

Load: ≤(U-9)/0.02Ω

Protection: IP65 for both cable and plug connection

Electric connection: Plug connection or 1.5m cable connection

Housing: stainless steel 1Cr18Ni9Ti

Diaphragm: stainless steel 316L

O-ring: Viton
