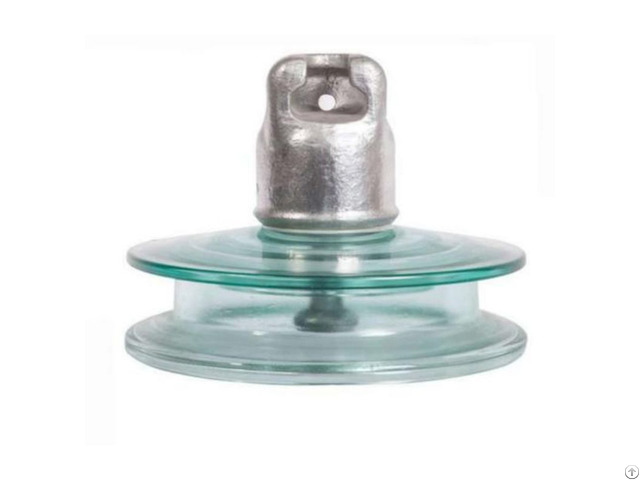

Double Umbrella Type Glass Insulators - China

Double-umbrella type glass insulator is the mainstream subcategory of anti-pollution glass insulators.

With its differentiated design featuring double umbrella skirts, it takes into account anti-pollution flashover, self-cleaning ability, and mechanical stability, and is suitable for complex transmission scenarios such as medium and severe pollution, damp and foggy conditions.

It is commonly used in industrial pollution areas and coastal salt spray areas.

1) Core structure and design features

The double umbrella skirt configuration adopts a combination design of large umbrella and small umbrella.

The upper large umbrella has a larger diameter and a larger outward angle of the umbrella skirt, which can effectively shield the lower small umbrella and reduce the adhesion of dust, salt fog, bird droppings, etc.

; the lower small umbrella is compactly arranged, significantly extending the creepage distance and enhancing the insulation performance.

The edges of the umbrella skirts are all rounded for corner treatment, reducing corona loss and enhancing the self-cleaning effect during rain washing.

Company Contact:

• Posted By: Hebei Weixiao Electrical Technology Co., Ltd

• Phone: +86 15230776999

• Address: East of Longma Company, North of Weiyi Road, Hope New District, Mengcun Hui Autonomous County, Cangzhou City, Hebei Province, China

• Email:

• Website: https://www.weixiaoelectric.com/

• Business Description: Founded on April 22, 2024, Hebei Weixiao Electric Technology Co., Ltd. has a registered capital of RMB 50.68 million.

  The company has a workforce of over 170 employees, including more than 30 management staff and 20-plus technical personnel.

  Its core business scope covers the production, sales, R&D of toughened insulators for high-voltage(HV)and ultra-high-voltage(UHV)tr ansmission lines, as well as the import and export of related products.
