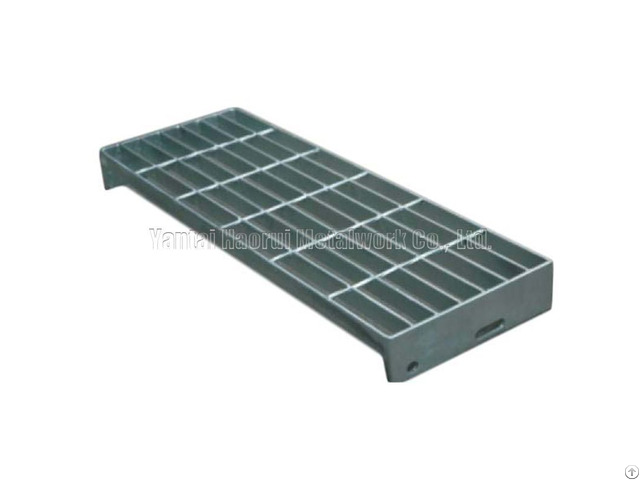

T2 Steel Grating Stair Treads - China

ISO Steel Grating Stair Treads

Our company produces complete steel ladders with hand railings which are made of grating treads.

According to whether the nosing to be used and the methods of mounting to stringers, grating treads are classified into four types, expressed as T1, T2, T3 and T4 - In view of economics it is advisable to use the recommended lengths and widths below Type of Stair Treads Checkered plate nosing Structure Characteristics

T2 NO For anchoring with bolts, the two ends are closed with 65 x5 mm flat bars with holes.

Without checkered plate nosing.

T1 Welded Fixing without Nosing

Recommended Stair Treads Width T1, T2, T3, T4 Bearing bar at 30mm pitch 95 125 155 185 215 245 275

T1, T2 Bearing bars 40mm pitch 125 165 205 245 285

T3, T4 Bearing bars 40mm pitch 115 155 195 235 275

Fixing hole centers 45 75 100 150

Grating Size Grade CN: Q235, Q345, USA: A36, UK: 43A

Standard CN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS

Certification CE, GOST, ISO9001, ISO14001, HSE

Bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I

Bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4.75X8, 100X8mm, etc

Bearing bar pitch 20, 25, 30, 32.5, 34.3, 40, 50, 60, 62, 65mm

Cross bar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)

Cross bar pitch 0, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.

Panel size 3x20ft, 3x24ft, 3x30ft, 5800x1000, 6096x1000, 6400x1000, as request

Surface treatment Untreated, hot dip galvanized, cold dip galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers' requirement.

Galvanization Standard CN: GB/T13912, USA: ASTM (A123), UK: BS729

Color Silver/Black

Application petroleum and chemical, port, power, transportation, papermaking, medicie, steel and iron, food, municipality, real estate, manufacturing

SURFACE TREATMENT Three ways of surface treatment can be adopted: galvanizing, painting and untreated, of which hot- dip galvanizing is recommended.

Hot-dip galvanizing It is a form of galvanization.

It is a process of coating steel grating with a thin zinc layer.

By passing the metal through a molten bath of zinc, the average coating thickness is 70μm when steel bards range from 3mm to 5mm in thickness.

Painting It is also a good way to get surface protective film.

Coating thickness depends on the customer's choice.
