Top Cnc Eps Cutting Machine - China

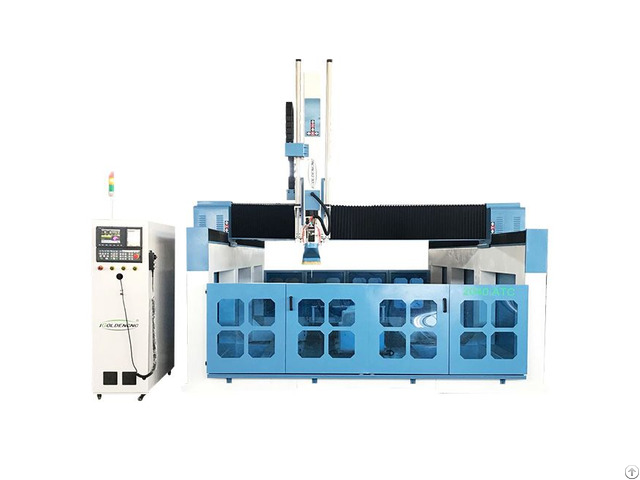

CNC EPS cutting machine with 4th rotary axis, has the power to machining or routing sculptures & props from EPS, Styrofoam, Polystyrene, EVA, PUR, etc.

; it is also perfect for CNC modeling jobs made of wood, MDF, epoxy, foam, resin, etc.

Its rotary is truly four-axis simultaneous.

Based on this, it is a 4 axis foam milling machine; the 4 axes refer to X, Y, Z, and A (rotary).

This structural design is the most suitable solution for sculpture or statue; because it is much more cost-effective than the 5-axis foam router.

Features of CNC EPS cutting machine:

1 - The processing precision is high and the speed is fast, which greatly improves the quality and processing efficiency of the processed products.

2 - It adopts imported linear square guide rails and double row and four rows of ball slides.

It has large bearing capacity, stable operation, high precision and long service life.

3 - The guide rail and the ball screw are equipped with a dust-proof air blowing device and a centralized lubricating device, and it can effectively discharge dust and the like to avoid damage to the transmission slider.

4 - It is completely out of the computer's remotely operated USB interface DSP operating system, with handle-type operation, simpler operation and more user-friendly design.

5 - The unique intelligent budget rule is adopted to fully utilize the potential of the motor to achieve high-speed machining, straight line synchronization, perfect curve, no computer memory and automatic start and stop of the cutting spindle.

6 - Intelligent processing of cross-border protection, CNC Foam Cutter Machine can prevent mechanical collision caused by over-processing of design files.

7 - The six-zone vacuum adsorption table can effectively absorb the plates of different sizes.

Regardless of the size of the CNC EPS cutting machine, it will inevitably produce a certain amount of noise during its work, which is mainly caused by the following aspects.

One is the noise that the spindle motor of the CNC Foam Cutter Machine is in operation, and the other is the abnormal noise that the foam engraving machine emits during the operation or movement of each axis.

There may be many reasons for the noise of the foam engraving machine spindle.

In addition to quality problems such as poor quality of the spindle motor, the abrasion caused by the long-term use of the foam engraving machine spindle will also make the noise generated more serious.

Therefore, if it is determined that it is related to the spindle motor of the foam engraving machine after a special targeted inspection work, it needs to be disassembled, repaired or replaced in time, because the abnormal noise also symbolizes the corresponding quality to a certain extent.

Hidden safety hazards must be taken seriously.

As for the abnormal noise corresponding to the working shaft of the foam engraving machine, generally speaking, it is because the shaft of the foam engraving machine has problems such as improper cleaning, tight connection, and wear of the ball.

Carry out the corresponding cleaning and lubrication work, and replace the balls in time, which can effectively reduce the noise of the foam engraving machine.

Parameter Configuration
