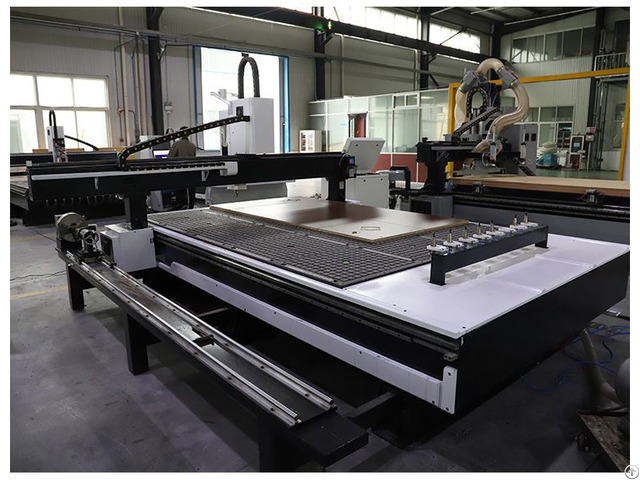

New ATC CNC Router With Rotary For Sale

Views: 15 Author: Site Editor Publish Time: 2021-12-16 Origin: Site ATC cnc router with rotary is widely used to rout out (hollow out) an area in the face of a relatively hard workpiece such as wood, plastic or metals.

atc cnc router is made with heavy steel frame through strict heat treatment and super finishing.

It is engineered with strictest standard for maximum stability and durability.

Our router cnc atc is equipped with linear type Automatic Tool Center (ATC) to perform multiple tasks accurately and quickly, it can also process workpiece and change the tools automatically.

This router atc machine features high precision, high performance and high quality, it is primarily used in the woodworking industry like signs, furniture and cabinets, doors and window frames processing, it can also be used for cutting and engraving wood products, plate processing and decoration industry.

3d wood carving machineatc cnc router with rotary atc cnc router with rotary atc cnc router with rotary ATC cnc router with rotary Features:

Machine Bed: High-quality 12mm steel structure welding seamless, whole machine body 600 degree quenching and milled by CNC machining center.

Machine Parts: Gantry milled by 2M*4M machine center, other parts are aluminum casting Spindle: Italy HSD 9.5KW air-cooling ATC spindle with 6000~24000rpm, the linear tool magazine including 8 tools, ISO 30 tool holder, long using life and easy maintenance Driver & Motor: Japan Yaskawa servo driver and motor with Taiwan APEX reducer, high speed and precision.

giving the feedback while the machine has wrong program Control System: Taiwan SYNTEC 6MA controlling system, Inverter: Shenzhen INOVANCE 11KW high performance inverter or Taiwan DELTA Linear Guide Rail: Taiwan HIWIN or PMI 25/30 mm square guide Rack and Pinion: Taiwan helical rack and pinion transmission with reducer Ball Screw: Taiwan TBI (Z axis) transmission Working Table: Vacuum adsorption with 10HP power French Schneider Electrical Components, Taiwan AirTAC pneumatic components Tool Calibration for quick and accurate tool length and “Z” zero recording.

Configurations of atc cnc router with rotary: ATC CNC router has a variety of options in terms of configurations based on your processing materials and requirements.

We can customize the CNC engraving machine with automatic tool changer according to your specific needs.

The following table lists the basic technical Product Parameter: Model 2130 ATC CNC Router with rotary axis

Working area 2100*3000*200mm

Spindle HQD 9KW air cooling spindle

Inverter Fuling

Motor Dorna Ac servo motor

Driver Dorna AC driver

Control System Taiwan LNC 4axis + hand-wheel

Table Vacuum & T-slot table with air cooling pump

Oil lubrication Automatic lubrication

Limit Omron limit

Transmission XY axis helical rack Z axis Taiwan ball screw

Rail X, Y, Z axis Taiwan HIWIN 25 Square guide rail

Screw Z axis TBI 3210 ball screw

Bed Thick steel welded big square tube

Repositioned Accuracy ±0.02mm

Travelling Position Accuracy ±0.02mm

Gangry Strong frame

Cabinet Independent cabinet

Voltage 3 phase/380V

Rotary axis With

Tools 10 pieces

Oil misting system With
