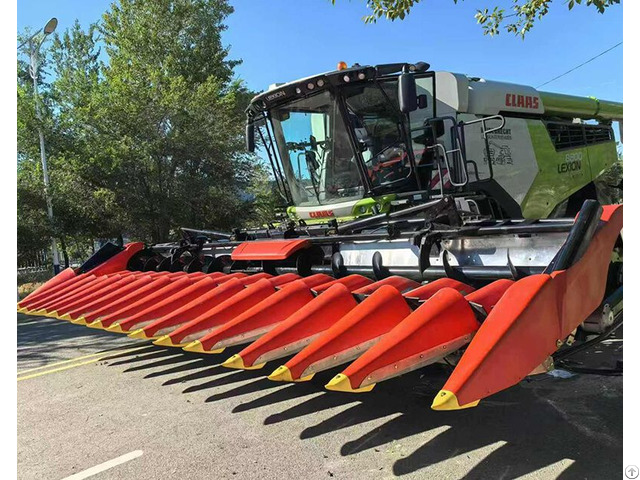

XWD-16 Row Corn Head

Tangshan Xinwanda Industrial Co., Ltd., the corn silage harvesting header specialist, is a leading manufacturer of rotary corn headers and forage harvester headers, serving global OEMs and distributors with one-stop solutions for crop collection, storage, and transportation.

Since its founding in 2010, Xinwanda has grown into the largest domestic corn silage header company by pioneering advanced rotary designs that replaced foreign imports and reduced costs for users.

The XWD-16 Row Corn Head is a premium 16 row corn head for sale, with hydraulic-adjustable picking plates that adapt on-the-go to varying ear sizes and densities.

As a versatile maize header for sale, it offers customizable row spacing from 20 to 30 inches—ideal for narrow-row and conventional configurations, similar to industry-leading variable-spacing models The XWD-16 row corn head is Xinwanda designed for the CLAAS DEERE and CASE combine harvesters, the row width can customized from 20-30inches(50-75cm).

With special grade structural steel used for the main beam and tips with injection molding process, the corn head have more strength and less weight in harvesting.

Lightweight reinforced folding frame

The use of high-quality, high-strength special-shaped steel and high-wear-resistant sheet metal plates can resist vibration and impact, avoid structural distortion and failure due to insufficient strength, so as to improve the durability and stability of the main frame and extend its service life.

Horizontal conveying spiral blade

By adjusting the three-dimensional gap of the spiral blades to ensure the feeding of different crops, it can easily cope with changing harvest conditions.

The large-diameter spiral conveyor blades ensure smooth conveyance when harvesting high-yielding crops or when the main machine is moving quickly.

The height of the spiral conveyor blades is adjustable, and it has the remarkable characteristics of protecting crops, large throughput, smooth operation, and easy adaptability to high-yield crop harvesting.

Injection molding process

The ridge divider, chain cover and some wearing parts are all made of nylon casting, which has the advantages of light weight, reliable quality, easy disassembly and assembly, can be replaced individually, and low maintenance cost.

Stainless steel wear-resistant strips are added to the vulnerable parts to improve wear resistance and increase harvesting efficiency.

Aluminum alloy gearbox

All gearboxes are made of aluminum alloy die-cast housing, which has the characteristics of low noise, light weight, high transmission efficiency, good heat dissipation, etc.

The application of a high proportion of aluminum alloy components realizes the lightweight design of the whole machine.

Automatic tensioning chain

The chain is set with automatic tensioning function, and the chain will automatically jump when overloaded, so that the chain and sprocket are always in the best condition and effectively protected to prevent foreign objects from entering and avoid damage to the header gearbox and combine harvester.

Hydraulically adjustable gap picking plate

A reliable hydraulic system is used to adjust the gap between the ear picking plates, so as to achieve timely adjustment of the gap between the ear picking plates.

It can be adjusted at any time according to user needs and accurately adapt to the harvest of different varieties of corn.

It is safe, reliable, non-blocking and highly adaptable.

Modular ear picking mechanism

It adopts an integrated overload protection gear transmission, a single set of power transmission, a small box load, and is not easy to damage; by adding or reducing the single unit of the ear picking mechanism, a corn kernel harvester with different cutting widths can be obtained.

Two four-blade adjustable stem pulling rollers, no broken stems when picking ears, low seed knocking rate, fast stem pulling, no entanglement, and no roller blocking.
