Track Forming Machine - China
price: 100000.00 Pound £

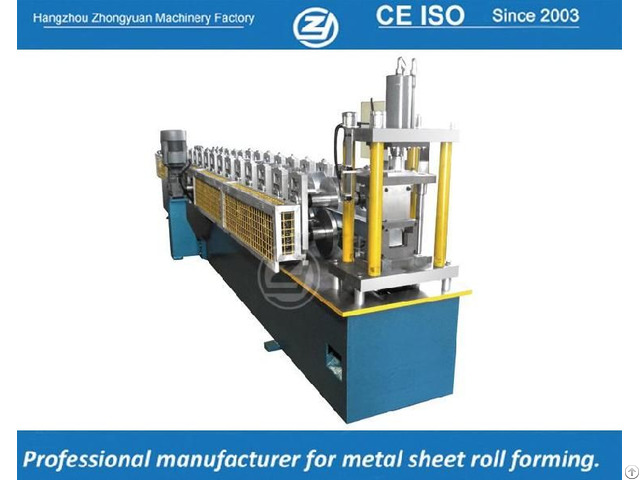

Stud & Track Forming Machine
Technical Data of� Stud & Track Forming� Machine
Suitable Material Cold-rolled steel strip and heat-treated galvanized steel strip
Thickness of raw material 0.5-0.6mm� (235-345Mpa)
Material of roller 45#� steel being quenched treatment
Material� of cutter blade& punching die Cr12 mould steel with quenched treatment, HRC58-60
Material of shaft High quality 45# steel with heat treatment.
Roller grinder milling.
Forming� speed about 20mmin
Power Requiremen Main motor power: 5.5� Kw(Depend on final design)
Hydraulic station power: 5.5Kw� (Depend on final design)
Diameter of shaft for rollers 55mm
Controlling system Mitsubishi PLC & converter
Quantity of rollers about 15 stations for main rollers
Weight of machine � About 6500KGS
Size of machine installation about� 15m x 1.7 m x1.4m
Our range of products Metal Roll Forming Machine, Sandwich Panel Production Line, Metal Sheet Forming Machines, Metal Roll Forming Machine, EPS Sandwich Panel Production Machine, Line Forming Machine, Step Tile Forming Machines etc.
We can better control the machine quality and delivery time of machines.
Company Contact:
- Posted By: Zhongyuan Machinery Factory
- Phone: 13867521382
- Address: Address:No.228, Yongli, Nanyang Street, Xiaoshan District, , hangzhou , Address:No.228, Yongli, Nanyang Street, Xiaoshan District, , China
- Email:
- Website: https://www.zhongyuanforming.com
Published date: July 19, 2019
- Business Description: Zhongyuan provide solutions for all of your roll forming machine projects.
We offer a wide variety of quality roll forming machines ranging from roll formers, coil processing equipment, etc
