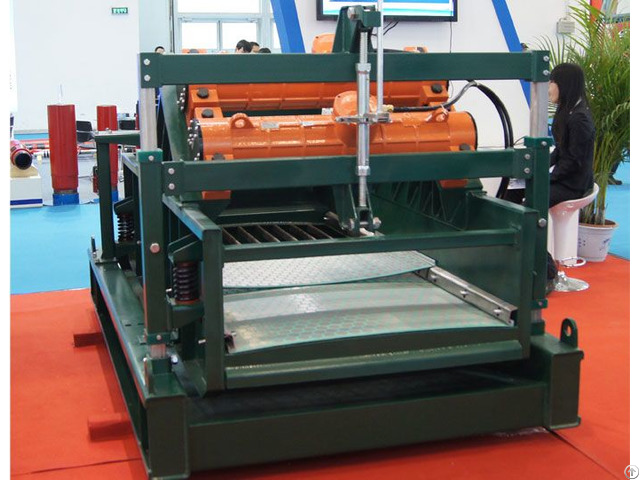

Linear Motion Shale Shaker

Linear motion shale shaker is the primary processing equipment of solid control system, it is used for separating the large drilling cuttings from drilling fluid, and it plays an important role in protecting drilling fluid performance.

( 1) Adopt Italy OLI brand motors which have the advantages of high strength vibration, large screening area, adjustable screen box angle, little noise and high efficiency.

(2) Heat treatment of the complete shaker deck.

Surface painting with heavy anticorrosion to extend the service life of shale shaker.

(3) Use the full adhesive hookstrip rigidity screen or steel frame screen, the fixed tensioning plate can make to replace screen more convenient and easier and also can replaced into many kinds of screens.

(4) Reasonable designing the cofferdam height of shale shaker logging tank can make mud buffer is uniformity flow, reduce direct impact on screen and effective extend the screen service life.

(5) We can manufacture dual or thribble shale shaker according to clients' requirements.

Linear Motion Shale Shaker Parameters

Model DCZS850-2K DCZS700-3G DCZS630-3K DCZS830-3G DCZS585-4K

Vibrating Mode Linear Motion

Motor Power 2×1.5kW 2×1.5kW 2×1.5kW 2×1.72kW 2×1.72kW

Vibrating Strength ≤7.0G

Amplitude 5~6mm

Treating Capacity 80 m3/h

352GPM 110 m3/h

484GPM 120 m3/h

528GPM 130 m3/h

572GPM 130 m3/h

572GPM

Deck Adjustment -1°~5°

Electric Specs 380V/50HZ or 460V/60HZ or Customized

EX Standards Ex dⅡ BT4

Screen Qty 2 panel 3 panel 3 panel 3 panel 4 panel

Screen Specification 850×1250mm40～200 mesh 700×1050mm40～200 mesh 630×1250mm40～200 mesh 830×1080mm40～200 mesh 585×1165mm40～200 mesh

Screen Area 2.12 m2 2.2m2 2.36m2 2.7m2 2.73 m2
