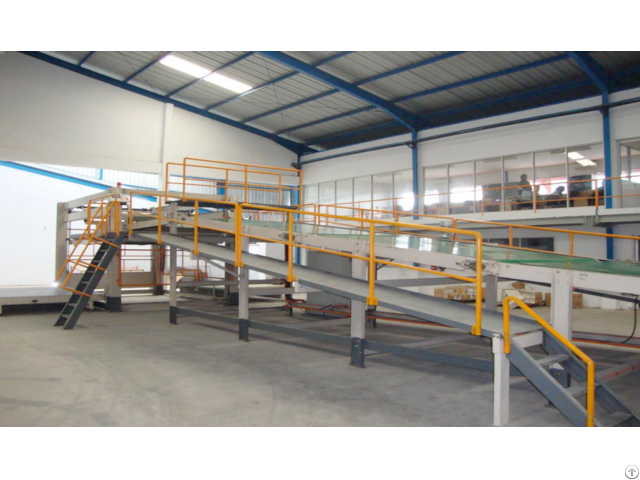

Royal Basket Down Stacker Machinery - China

Structural features: 1) Five sections using high-strength belt conveyor, Frequency loop control, Precision Auto Points, smooth delivery, rapid separation and delivered to the Ministry of basket gantry.

2) Sun gear press paper does not do damage to the cardboard.

Carbon fiber press paper is extremely resistant.

3) Block car with the order structure, automatic adjustment, you can order the size of the fragmented, staggered stacking.

4) Ministry basket out feed nylon plastic caterpillar output, does not damage the backing paper.

5) Elevator servo control gondola lift, rational counterweight structure, optimal energy efficiency, After the basket out feed, Transfers power from the platform to the next step of the crawler.

Type MJDM-3-1800

The largest collection of paper width 1850mm

Collection of paper length Standard: 500 ~ 3500mm(Can be customized) Logistics roller Can be configured according to the order

Lateral transport mode Modules belt

Stacking height 1700mm

Maximum production line speed 200m/min

Dimensions Length × width × height: 20000×3200×2800mm

Total weight 12T

System parameters

Position machine Taiwan WEINVIEW or MCGS TONTEK Color touch screen10.4”

Lower machine Performance of Taiwan DELTA Series PLC

Lift Control AC servo controller

Frenquency machine Taiwan delta

Low-voltage electrical CHNT, Schnerder Low-voltage electrical

Power Parameters

Conveyor roller drive RV reducer: 3kw×5

Horizontal driving basket Gear reducer: 3KW×2

Paper stop car drivers RV reducer: 0.75KW

Lifting drive Worm Reducer: 15KW
