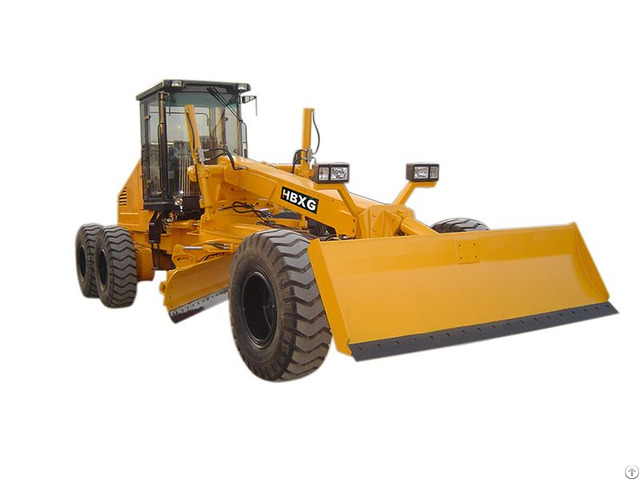

Moto Grader Famous Brand Diesel Engine - China
price: contact company for price
Moto Grader Famous brand diesel engine with reliable and powerful performance
Technical Features
1 - Famous brand diesel engine with reliable and powerful performance.
2 - Torque converter and power-shift gear box introduced from Germany ZF inc.
are integrated together.
Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
3 - Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive balance case, boxed oscillated steering front axle with leaned wheels.
4 - Popular working mechanism with pendulum-arm connection rod structure.
Standard equipped free-maintenance rolling-plate circle device.
Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
5 - Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equializing valve for the blade lifting, patent hydraulically-operated pin drawing device is designed firstly in board.
6 - Steering system with center articulated jount and tilting turning front wheels can get offset travel of entire machine.
7 - Service braking system of caliper disc brakes on four rear wheels and mechanical internal expending parking brake.
8 - Electro-hydraulically operated with entire instrumental monitoring system, free-maintenance OPTIMA batteries.
9 - It is optional for front dozing blade and rear ripper.
Performance Parameters
Model XHP220C XHP180C/180D XHP165C
Operating weight Kg 16900 16000 15000
Front axle load Kg 5820 5150 4150
Rear axle load Kg 11080 10850 10850
Max.
Forward speed Km/h 36.8 38.2 40.4
Max.
Backward speed Km/h 24.8 24.5 25.7
Speed gear number F6/R3 F6/R3 F6/R3
Turning radius mm 7800 7800 7500
Hydraulic system pressure Mpa 18 18 18
Blade length X height mm 3965*610 3965*610 3660*610
Front wheel track mm 2150 2150 2150
Rear wheel track mm 2340 2340 2340
Wheel base mm 6362 6362 6062
Engine model 6CTA8.3 6BTA5.9/D6114ZG 6BTA5.9
Engine power kW 158 132/132 125
Overall Dimensions mm 8585*2790*3340 8585*2790*3340 8285*2595*3340
HBXG is the pioneer of the track bulldozer manufacture in China.
Now it has become a state-owned public company, a leading manufacturer of bulldozer.
We have Bulldozer, Hydraulically Driven Bulldozer, Track Bulldozer, Motor Grader, Hydraulic Direct Drive Bulldozer, Wheel Loader, Wheel Excavator, Excavator, Track Excavator, Track Loader, Crawler Dozer.
Company Contact:
- Posted By: Xuanhua Construction Machinery Co., Ltd.
- Phone: +863133186111
- Address: No. 21, Dongsheng Road, Xuanhua, Zhangjiakou , Hebei Province, China
- Email:
- Website: https://www.hbxgdozer.com/
Published date: March 20, 2023
- Business Description: Xuanhua Construction Machinery Co., Ltd. (Hereinafter referred to as HBXG) was founded in 1950 - HBXG is the pioneer of the track bulldozer manufacture in China.
Now it has become a state-owned public company, a leading manufacturer of bulldozer, HBXG locates in Xuanhua, a historic city in the Northwestern of Hebei Province with only 175 kilometers away from Beijing, capital of China.
In 2010, the HBXG was incorporated by HBIS Group Co., Ltd (hereinafter referred to as HBIS).
HBIS is also a large-scale, state owned, public company,the top 500 enterprises all over the world.
Centering on steel making, we are also involved in mineral resources, financial services, modern logistics, iron & steel trade and equipment manufacturing.
