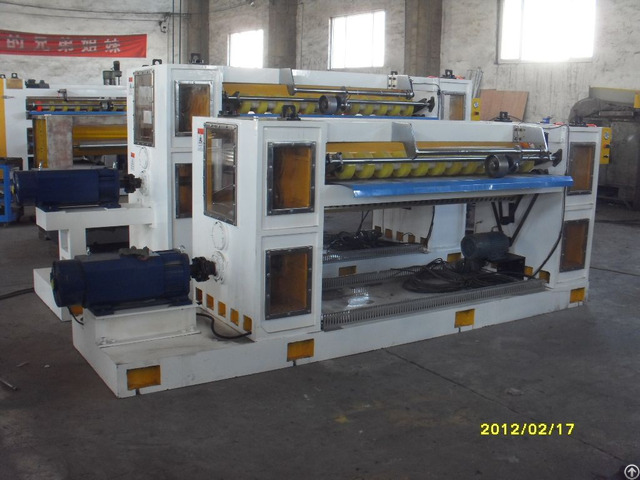

Helical Knives Nc Cutter Machine - China

※Technical parameters: 1 - Effective width: 1800mm 2 - Operation direction: left or right (determined to the customer’s factory)

3 - Highest machinery speed: 200m/min, Economic running speed: 150m/min.

4 - Mechanical configuration: computer-control helical cross cutter

5 - Minimum cutting length: 500mm 6 - Maximum cutting length: 9999mm

7 - Precision of cutting paper: uniform speed: ±1mm, non-uniform speed: ±2mm 8 - Equipment size: Lmx5.0*Wmx2.0*Hmx2.0

※Rollers size

1 - Centre distance between up-knife and down-knife: ￠230mm.

2 - Front down transfer roller: ￠156mm

3 - Back down transfer roller: ￠156mm ※Power motors and electrical parameters: 1 - Main drive motor power: 37KW Full AC synchronous servo

2 - Before and after feeding motor power: 3KW(Frequency Control)

3 - Lubricating oil pump motor power: 0.18KW*2

※Mainly purchased parts, raw materials and origin: Name of main parts Brands or place of origin Material and type

Full AC servo motor Italy Phase 37KW

Feeding frequency motor Hebei hengshui yongshun bearing HRB, ZWZ, LYC Up and down the knife roller bearings from Japan NSK

belt Germany OPTIBELT Up sleeve Xianyang chaoyue Seat belt bearing Zhejiang wuhuan Contactors and relays, relays of middle France Schneider Proximity Switch Japan OMRON
