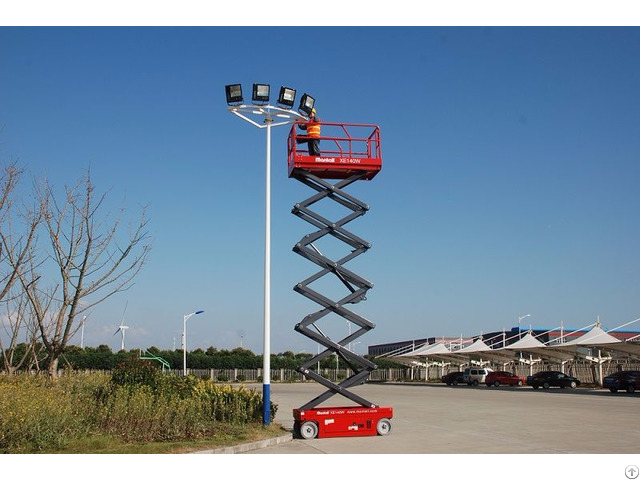

Electric Self Propelled Scissor Lift Xe140w - China
price: contact company for price
Working height max (m) 14
Platform Height max(m) 12
Outreach(m) 1
Lifting capacity(kg) 350
Lifting capacity(Extended platform) 120kg
Weight(kg)ANSI/CSA Standard(kg) 2690
CE/AUS Standard(kg) 3225
Platform size(m) 2.3×1.15×1.1
The length of platform extended(m) 3.3
Skirting board height(m) 0.172
Stowed size(L×W)(m) 2.45×1.2
Stowed height(m) 2.51
Height of the machine with platform folded(m) 1.95
Wheelbase(m) 1.85
Length of the machine with platform extended(m) 3.5
Hydraulic tank capacity(L) 25
Gradeability 30%
Ground clearance(m) 0.1
Pothole protection board ground clearance(down)(m) 0.019
Inside rotation radius(m) 0
Outside turning radius(m) 2.3
Load number max 2
Raised time/Lowering time(s) 72/38
Traction speed(km/h) 3.4
Safe speed(km/h) 0.7
Vertical tilt°(ANSI/CSA) 3
Vertical tilt°(ANSI/CSA) 2
Lateral tilt°(ANSI/CSA) 2
Lateral tilt°(CE/AUS) 1.5
Power source 4×6V;225Ah
Tire size(mm) 406×127×318
Drive model Hydraulic drire or electric drive
Company Contact:
- Posted By: Mantall Heavy Industry Co.,Ltd
- Phone: +8618962821291
- Address: No.62,Binhai Avenue,Binhai Industry Park,Qidong Economic Area, Nantong , Jiangsu , China
- Email:
- Website: http://www.mantall.com
Published date: December 23, 2016
- Business Description: The professional manufacturer of aerial work platforms, including scissor lift, boom lift, personal lift and truck-mounted.
