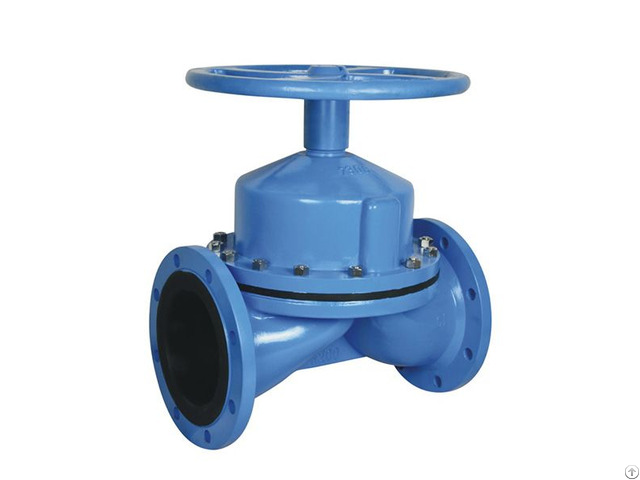

Diaphragm Valve Weir Type - China

DIAPHRAGM VALVE WEIR TYPE Valve Size: DN15 – DN350

Pressure Rating: PN10

Material: Cast Iron(GG25), Ductile Iron(GGG50), WCB, CF8 and other Alloy Steels

Design & Manufacture: BS5156

Face to Face Dimension: BS5156

Ends Dimension: DIN2533 BS4504, JIS B2212, ANSI B16.5

Test & Inspection: EN12266, API 598

Features:

Leflow’s Diaphragm valve is designed to handle media that are aggressive or contain suspended particles, It has following options:

1 - Body: Weir type(A type) and Straight through type(KB type);

2 - Body coating: Unlined, Many kinds of Rubber(Natural Rubber, EPDM and Butyl), Many kinds of Fluorine plastic(PFA, PVDF, TFE and so on);

3 - Diaphragm: Many kinds of Rubber(Natural Rubber, EPDM and Butyl), Many kinds of Fluorine plastic(PFA, PTFE AND FEP);

4 - Ends: Flanged or Screwed;

5 - Operation: Manual, Pneumatic and Electric;

6 - Testing: Lining layer check: BS6755 Electric spark detecting;

Body strength test: 1.5 times rated working pressure;

Seat test: 1.1 times rated working pressure.

7 - Surface coating: All kinds of paint or Fusion Bonded Epoxy.

Buy our Diaphragm Valve Weir Type
