A Complete Guide To Gate Valve

The gate valve is the most common shut-off valve.

Unlike ball valves, they are not quarter-turn devices; instead, they close and open through revolutions of the hand wheel.

Used in wastewater plants, power plants and process systems, the threaded system of the gate valves give them an advantage over the quarter turn system of the ball and butterfly valve in large applications.

Fluid through gate valves experiences only minimal pressure drop as gate valves allow total flow through its passage when fully open.

This post discusses the functions, symbols, advantages and disadvantages, types, and other essential things you need to know about the gate valve.

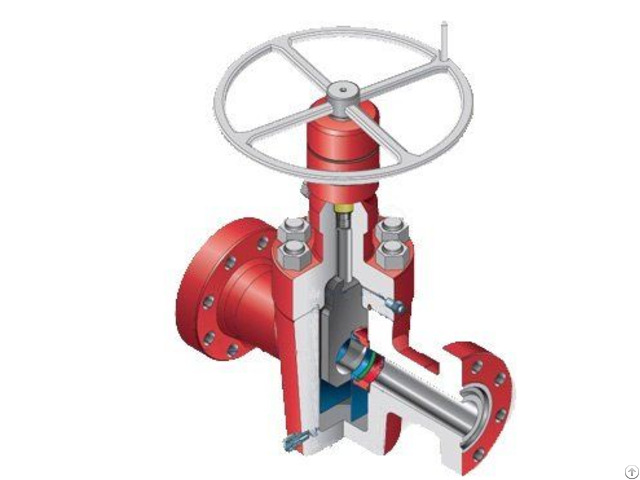

What is A Gate Valve? Gate valves can also be called sluice valves or knife valves.

They are control valves that allow or restrict the flow of media completely.

Gate valves use a flat gate to close off flow between pipe flanges.

A gate valve, being a full port valve, has an equal diameter to the pipe through which the fluid passes.

Hence, unlike butterfly valves, gate valves minimise pressure losses in the fluid when fully open.

Also, because of the equal pipe and valve diameters, gate valves allow for the movement of pigs within the pipe for cleaning and inspection operations.

While butterfly valves can be used in flow regulation and on-off services, gate valves should only be used in on-off services as blocking valves and also to allow fluid flow.

They should not be used in throttling.

Because of their uncomplicated construction and capability to be used in different low-pressure applications, gate valves are one of the most common valves in the industry.

Gate Valve Symbol The gate valve symbol is composed of two triangles meeting at a point.

A vertical line is inserted between the triangles, and solid horizontal lines extend from the opposite sides of the triangle.

The vertical line indicates the blocking operation of the gate valve, and the horizontal lines show that the valve has a two-way function in on-off applications.

The gate valve symbol used in piping and instrumentation diagrams (P&ID) is a modification of the valve symbol, which is the gate valve symbol without the vertical line between the triangles.

The three isometric symbols in the diagram indicate symbols for butt-welding end connections, flanged ends, and socket ends connections.
