S485 M Ride On Concrete Laser Screed Machine - China

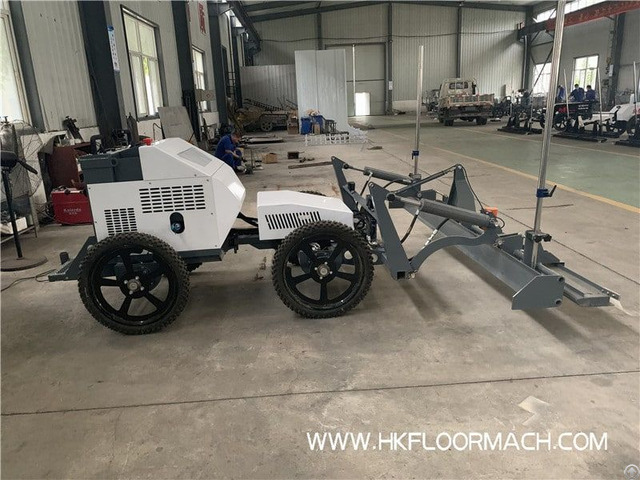

S485-M Concrete Laser Screed machine is a new type light laser screed machine.

It weighs only 600kg and is equipped with wide wheels that can be used in a variety of concrete leveling works with rebar mesh.

At the same time, the machine is equipped with an advanced leica laser system with high precision.

Description

s485 laser screed Type S485-M Ride on laser screed

Engine Briggs&Stratton 23hp

Energy burn 1.5L/h

Fule tank capacity 36L

Drive system Hydraulic motor four-wheel drive

Vibration frequency 800N

Laser system Leica

wheels Narrow wheels& Wide wheels

Diver type Reducer+Motor

Operatio mode of turning Electronic control Hydraulic system

Working wide 2.5m

Size 2660x2600x1040

Weight 600kg

The parameters and pictures in this catalogue are for reference only.

The specific data is subject to the actual product.

Concrete laser screed machine Performance Characteristics 1 - Intelligent operation by handle and easy to control, the machine can be operated by one person.

It can freely move and turn with agility, allowing a running system controlled by hand.

The wheels can go forwards, backwards and around with manually controlled speed.

2 - Laser gun is installed separately, which makes it possible to do large area one-time construction while ensuring consistent ground level.

The ground level will not be affected by the pattern plates, inducing no random error .

Large area one-time construction will reduce joint place, thus lower the follow-up ground maintenance cost.

3 - Integrated Leveling Head comprises scraper blade, vibrator, vibrating plate, screw conveyor and other parts, combining working procedures of mixing, leveling, vibrating and etc, to complete the job in a row, so as to increase efficiency and reduce cost.

It can keep level of the working surface even when the ground base is uneven with bumps and slope.

Square end vibrating plate of 4000 times/min high vibration frequency will ensure concrete floors with great intensity and dispersed deformation strength, thus effectively prevent the occurrence of floor bubble, shell, cracking and unevenness.

4 - The elevation is measured automatically by the laser measurement and control system; and the ground’s high point height is automatically controlled by the laser machine’s computer.

Based on that, the ground can be more even by precision leveling directly on the concrete layer and the ground flatness will not be influenced by the pattern plates.

Without having to be the formwork, the cost for material and labor as the working period will all get reduced.

This machine can finish construction area of more than 300 sq.

meters per hour.

which means 3000-5000sq.

meters per day.
