Mmo Electrode - China

MMO Titanium electrode is the process of using electricity to break down water into hydrogen (H 2 ) and oxygen (O 2 ).

MMO Coated Titanium Anodes are the anode portion of hydrogen electrolysis.

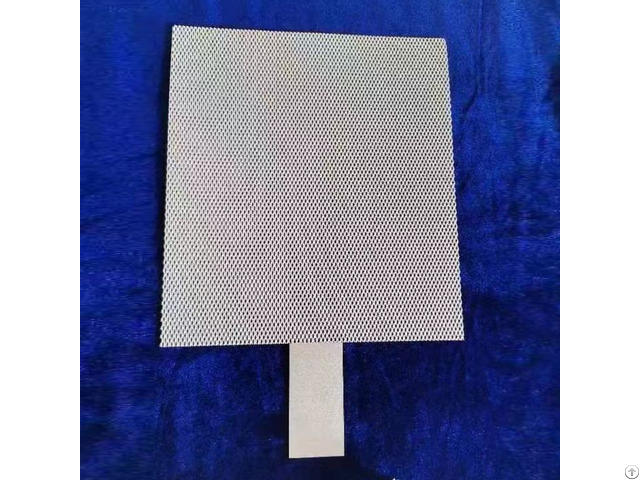

MMO-Coated Titanium Anodes are also known as dimensionally stable anodes, where MMO is an acronym for mixed metal oxide.

MMO Coated Titanium anodes have a longer service life than conventional anodes.

Its mixed metal oxide coating protects the titanium anode from corrosion and extends its service life.

In addition, the coating increases the surface area of the anode, which improves reaction efficiency and ensures efficient operation over time.

This allows the use of higher current densities and lower operating voltages, thereby reducing energy consumption and operating costs.

Overall, MMO-coated Titanium Anodes are an efficient option, especially for hydrogen production processes.

Titanium MMO anode is suitable for a wide range of environments, including seawater, brackish water, fresh water, carbon backfill, concrete, sand and soil.

Specifications

Material: Gr1 titanium alloy as substrate, MMO as coating

Coating metal: Ruthenium-Iridium, Iridium-Tantalum, Ruthenium-Iridium-Tin, Ruthenium, PbO2, Pt (Platinum)

Coating thickness: 0.1–15μm

Type: Sheet/mesh/tube/rod/felt, available in different sizes and shapes, or according to customer drawings

Working parameters:

Current density: ≤2, 000A/m2

Working current range: Working environment: pH 0.1–14

Maximum fluoride ion content: 200PPM MMO Ti Rod Anode

Titanium Rod Anodes, Coated with Triple Metal Oxide - MMO, Sizes starting from 2mm Dia sold in various pre - cut lengths.

Applications : water electrolysis, Hydrogen Evolution, Oxgen Evolution, metal electrowinning, cathodic protection For sizes not listed here, custom lengths/sizes and large quantities, please forward your requirements to contact us
