Defensive Barrier Military Defensive Barrier Military Bastion Manufacturer Military Bunker Product Description

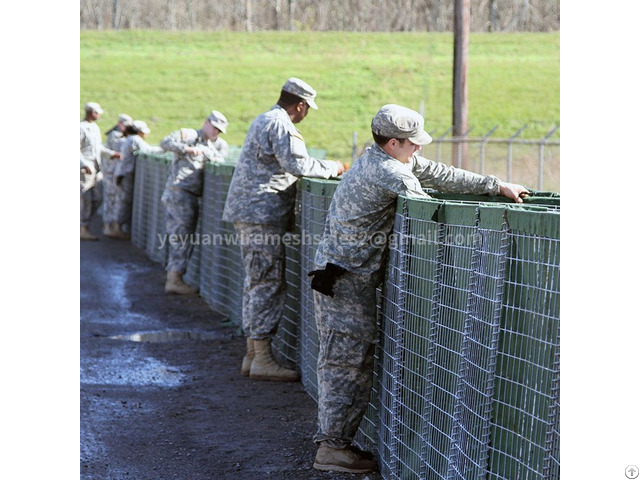

Hesco defense wall also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc.

It is a prefabricated, multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile.

Units can be extended and joined using the providedjoining pins.

It is easy installed with using minimal manpower and commonly available equipment.

After extended, it is filled into sand, stone, then hesco barrier like a defence wall or bunker, it is widely used for military fortification and flood control.

Accessories Supplied With Carrier Units.

Product Name Hesco defense wall

Product Type Welded mesh

Material Galvanized steel wire or Galfan/zinc-5%aluminum wire

Wire Diameter 4.0-5.0mm

Geotextile 250g-400g

Geotextile colour sand clolor, Brown, Gray, and Military Green.



Mesh hole 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm×100mm Model Height(M) Width(M) Length(M) Number of cells

YY-1(Mil 1) 1.37 1.06 10 5+4=9 cells

YY-2(Mil 2) 0.61 0.61 1.21 2 cells

YY-3(Mil 3) 1.0 1.0 10 5+5=10 cells

YY-4(Mil 4) 1.0 1.5 10 5+5=10 cells

YY-5(Mil 5) 0.61 0.61 3.05 5 cells

YY-6(Mil 6) 1.68 0.61 3.05 5 cells

YY-7(Mil 7) 2.21 2.13 27.74 5+4+4=13 cells

YY-8(Mil 8) 1.37 1.22 10 4+5=9 cells

YY-9(Mil 9) 1.0 0.76 9.14 6+6=12 cells

YY-10(Mil 10) 2.12 1.52 30.5 5+5+5+5=20 cells Hesco defense wall can be widely used in surrounding security and defensive walls, equipment revetments, explosives and contraband search areas, ammunition compounds, personnel and material bunkers, observation points, defensive shooting positions, highway checkpoints, border checkpoints, protection of existing structures, highway traffic management, flood control, river courses, emergency flood control deployment, erosion control, retaining walls

Explosion-proof wall characteristics

1 - Easy to handle and install

2 - High strength and impact resistance

3 - Long life, normal use

4 - It can be filled with sand, cement, stones, and soil.
