Gas Fired Fully Premixed Steam - China

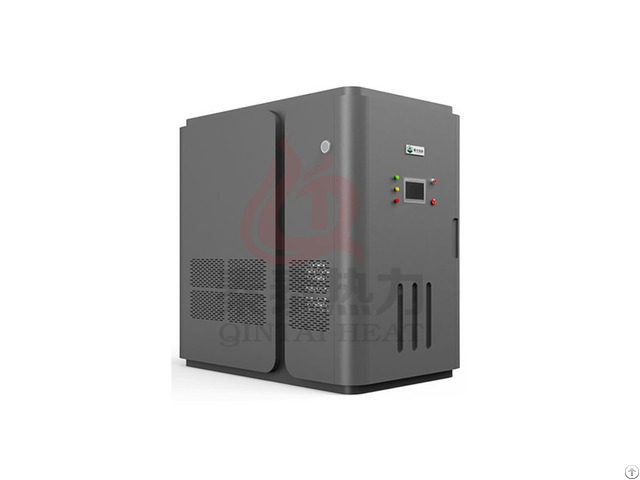

Gas-Fired Fully Premixed Steam Generator – Standard Version

The standard version features core technologies including precision control, constant water level control, proportional combustion, Ethernet bus, and remote IoT.

This Gas-Fired Steam Boiler, combining precision control, constant water level control, proportional combustion, Ethernet bus, and remote IoT, boasts a higher level of intelligence and automation.

It enables intelligent "on-demand steam supply" management, avoiding energy waste.

It also enables efficient communication between equipment and factory systems, improving production collaboration and providing efficient, stable, safe, and environmentally friendly steam supply for industrial production.

Gas-Fired Fully Premixed Steam Generator(Standard Version)Features

(1) Composite superconducting heat pipe steam generation technology

Thermal conductivity is 40-60x faster than traditional boiler steel.

Enables 3-second steam startup (vs.

40 minutes for traditional coal-fired boilers), avoiding 1 hour of morning production delay (≈$500 loss for a pharmaceutical sterilization line).

For textile dyeing factories, it ensures continuous steam supply during peak production, reducing fabric shrinkage rate by 3%.

(2) Exclusive and latest flameless combustion technology

Natural gas burnout rate reaches 99.9%, with NOx emissions ≤30mg (meets China GB 13271-2014 and EU EN 15502 standards).

Avoids environmental penalties (up to $10, 000/year in high-emission areas) and helps factories pass annual environmental inspections.

For chemical plants near residential areas, it eliminates "noise complaints" from traditional combustion.

(3) Infrared radiation super heat absorption technology

Using special superconducting materials, greatly improving the contact and absorption efficiency between the heat exchange surface and heat, making full use of heat and enhancing the overall heat exchange effect;

(4) FPTS condensation waste heat recovery technology

Deeply processes combustion flue gas, capturing 80% of waste heat and reducing exhaust temperature to ≤55℃.

For a 1t/h factory running 24/7, this cuts annual natural gas costs by ~$15, 000 (vs.

traditional boilers with 85% thermal efficiency).

The energy saver model achieves 100.35% thermal efficiency, exceeding national energy-saving standards.

(5) Intelligent real-time monitoring technology

Contains more than 20 protection (units) to monitor the equipment operation status at all times and quickly respond and take countermeasures if any abnormality is found Measures, through this all-weather, multi-dimensional monitoring and protection, ensure safer and more stable operation;

(6) 2㎡ floor space

1t/h unit occupies only 1/5 the space of traditional boilers (traditional 1t/h boiler needs 10㎡+).

No dedicated boiler room required, saving 10㎡ factory space (≈$2, 000/year in rent for industrial areas in China).

Suitable for small food factories or workshops with limited space, and can be installed 3 meters from production lines to reduce pipe installation costs by 40%.

(7) Japanese special technology, low maintenance cost

Using Japanese special technology, the equipment is formed through an integrated casting method, making it highly stable, durable, low failure rate, and low maintenance cost.

(8) No labor, no supervision, no inspection, no need for distribution, and nearby installation
