Custom Welded Brick Coil Mesh - China

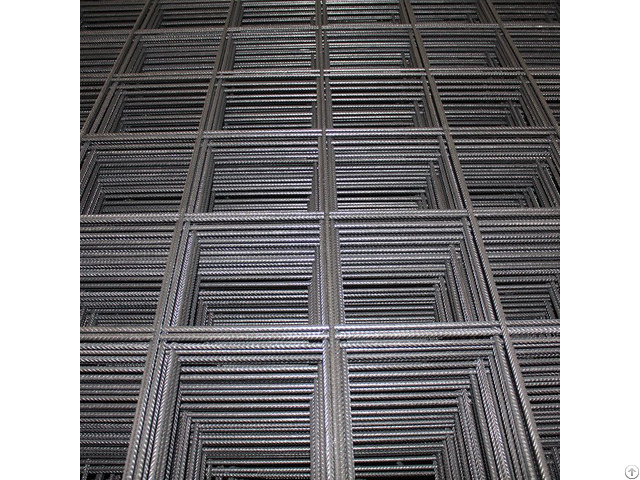

Concrete Reinforcing Mesh

Concrete Reinforcing Mesh Is a kind of grid structure made of steel bar or steel wire, widely used in buildings, roads, Bridges and other civil engineering, used to enhance the strength and stability of concrete structure.

welded wire Reinforcement

Welded wire reinforcement is a material consisting of cold-worked steel wires with concave or raised rib deformations.

The wire itself is cold drawn or cold rolled from hot rolled steel bars.

The cold working process includes reduction, deformation and straightening.

After producing the final wire diameter, the wire is automatically assembled and machine-welded to form a mat-type structural reinforcement for concrete.

Welded reinforcing wires, historically known as woven wire fabric, is produced in sheets and coils and is primarily used in the precast and cast-in-place concrete industry.

Welded wire reinforcement is an efficient, economical and viable alternative to the standard method of placing loose individual bars for concrete reinforcement.

How Welded Wire Reinforcement (WWR) is made

Quality-controlled, hot-rolled light bars are cold-worked through a series of molds or cassettes to reduce size to produce project-specific diameter wire with higher yield strength.

Welded wire concrete reinforcing crossings are resistance welded by automated machines.

Pressure and heat fuse the interacting wires together to form a uniform section and secure it to a fixed position.

No self-consuming electrode material is used in the welding process.

Company Contact:

• Posted By: Beijing Xingtai Steel Weldmesh&Technology Development Co.,Ltd

• Phone: 17526832268

• Address: 12 HUANKE ZHONG ROAD, JINQIAO TECHNOLOGY INDUSTRIAL BASE，BEIJING, P.R.CHINA., BEIJING , BEIJING , China

• Email:

• Website: https://www.xghwsteel.com/

• Business Description: Beijing Xingtai Steel Weldmesh&Technology Development Co.,Ltd is a large-scale professional enterprise engaging in the production and development of reinforcing mesh(welded wire mesh) in China.

  The company was registered and found in January, 2002, with the current registered captital of RMB 100million, has an occupied area of 140mu.

  Beijing Xingtai Steel Weldmesh&Technology Development Co.,Ltd can produce various specifications of cold rolled, hot-rolled reinforcing mesh and heat-shrinkable insulation casing steel bars and other related products.

  It has an annual output of 250,000tons of high quality reinforcing meshes and 50,000tons heat-shrinkable insulation casing steel bars.
